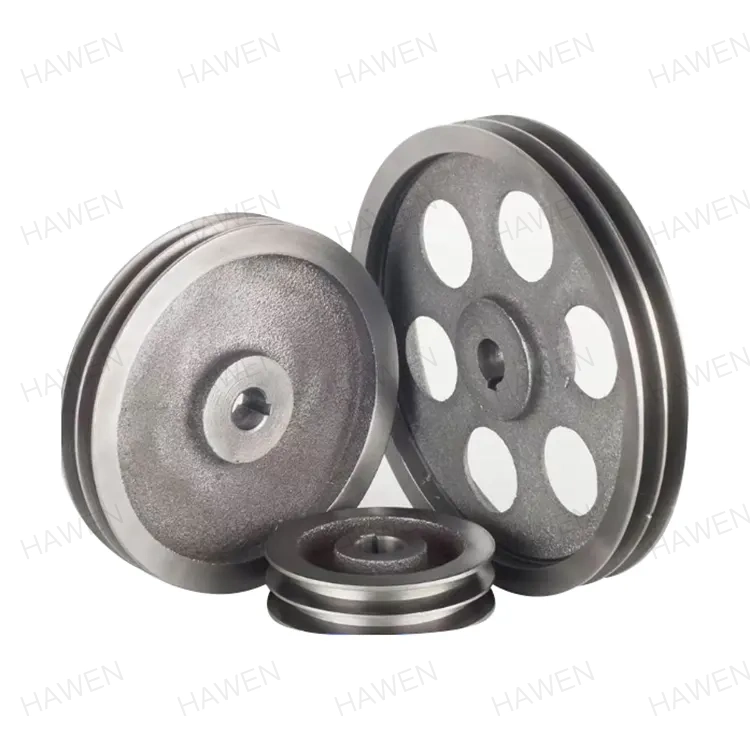

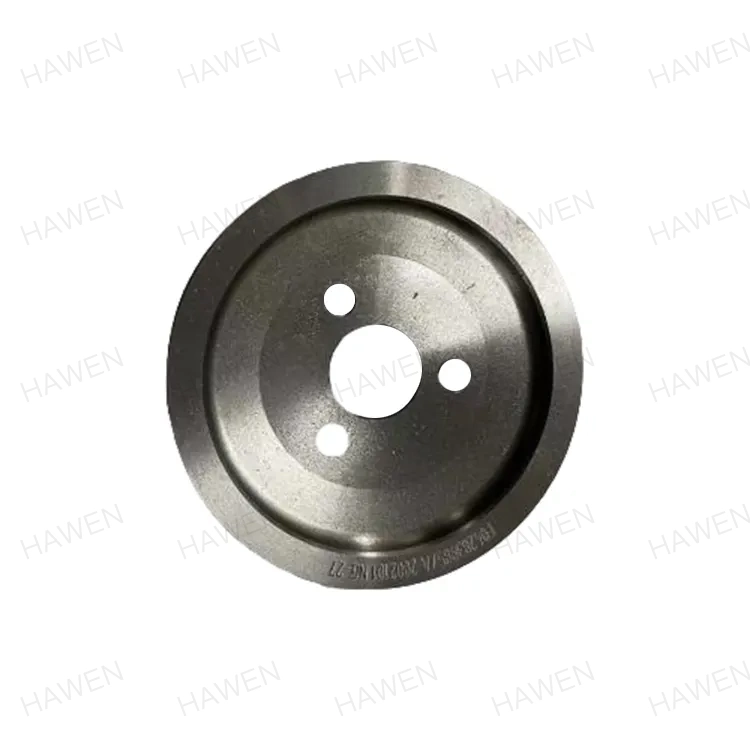

Variable Speed Water Pump Pulley

HAWEN is a high-tech manufacturing facility and certified supplier specializing in the production of high-precision Variable Speed Water Pump Pulley systems designed for industrial fluid conveyance and cooling architectures. The factory utilizes specialized Gray Cast Iron (HT250) and Ductile Iron (QT500-7) to fabricate heavy-duty components capable of managing precise transmission ratios ranging from 2:1 to 4:1. Operating ten fully automated production lines, the company maintains strict inner bore tolerances of ≤0.005 mm and an overall process yield rate of 99.995%. All components undergo automated electrophoresis surface treatment to eliminate rust risks while fully complying with international RoHS and REACH environmental standards.

Industrial Fluid Transmission Applications

Mechanical drive systems depend on robust power transmission to maintain stable operations under volatile operational speeds. The integration of a Variable Speed Water Pump Pulley ensures that fluid circulation remains continuous, preventing thermal overload in combustion engines and large-scale industrial fluid systems. By linking the main drive shaft to the fluid pump, these components effectively manage dynamic torque requirements across multiple sectors.

• Automotive Cooling Configurations: The equipment drives the fluid circulation pump via crankshaft power. At high operational speeds, the component handles up to 3000 rpm to maintain a constant coolant flow rate.
• Industrial Fluid Conveyance: Within centrifugal pump systems, the equipment transfers motor power through flexible connections. Operators adjust fluid lift in sewage treatment systems by utilizing components of varying diameters.
• Agricultural Irrigation Infrastructure: Pulley-driven submersible pumps adapt efficiently to complex outdoor terrains. In deep-well applications located far from the primary power source, extended wheelbase designs prevent moisture damage to the motor.
• Climate Control Compressors: The component connects to the engine crankshaft using multi-ribbed belts. It maintains stable torque reserves even when the machinery runs at idle speeds.
• Marine Cooling Architectures: Heavy-duty components designed for salt-spray environments resist continuous exposure to corrosive variables, ensuring uninterrupted main engine cooling.
• New Energy Vehicle Systems: Electric fluid pump configurations utilize direct drive technologies to achieve precise temperature control within battery packs via stepless speed variations.

Technical Dimensional Specifications

Precision manufacturing requires strict adherence to dimensional metrics to ensure complete compatibility with industrial motors and shaft assemblies. Below are the verified technical parameters for single-groove and multi-groove drive components:

Material Engineering and Metallurgy

The operational longevity of a Variable Speed Water Pump Pulley depends directly on the structural composition of the selected metal. Utilizing alloys composed primarily of iron, carbon, and silicon (with carbon content between 2.1% and 4%), the manufacturing process optimizes graphite morphology and matrix structures for heavy industrial wear.

Gray Cast Iron (HT250)

This material delivers a tensile strength of 250 MPa and a hardness rating of 180-250 HBW. It provides excellent structural rigidity and vibration damping properties, making it highly effective for standard industrial conveyance setups where structural deformation must be avoided.

Ductile Iron (QT500-7)

Through specialized magnesium treatment, the graphite within this alloy undergoes spheroidization. This metallurgical modification increases the overall tensile strength to 500 MPa and delivers an elongation rate of 7%, rendering the finished equipment highly resistant to fatigue under sudden torque fluctuations.

High-Silicon Cast Iron Alternatives

For specialized environments prone to chemical exposure, variants containing 14% to 18% silicon content are deployed. This formulation provides enhanced resistance against strong acid corrosion, extending the lifecycle of the equipment in harsh processing plants.

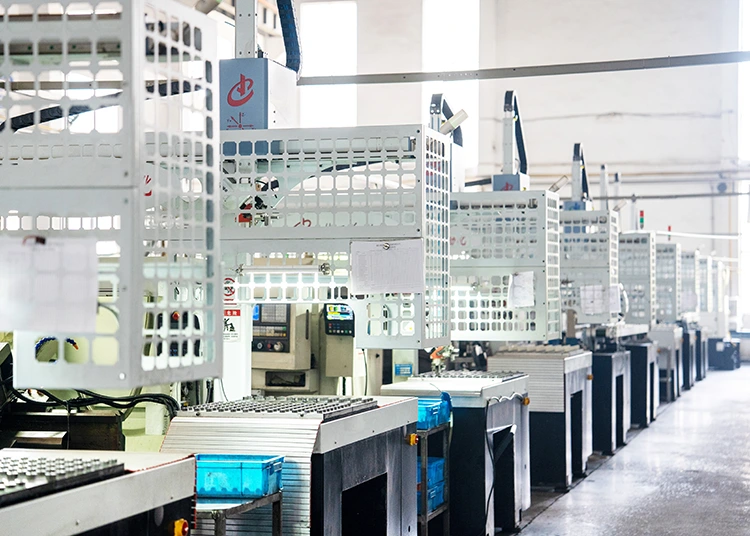

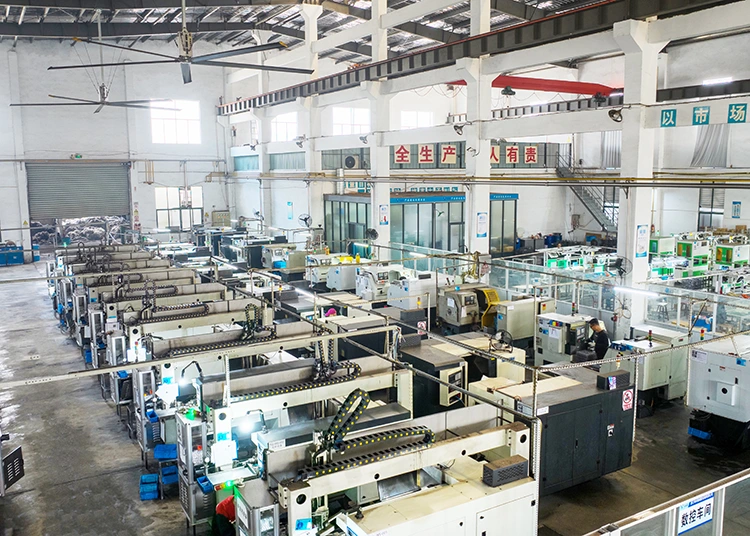

Automated Manufacturing and Process Control

To preserve assembly compatibility and eliminate physical defects, production relies on strict dimensional monitoring. Minor deviations in machining can cause systemic vibration, accelerated belt wear, and premature bearing failure. Implementing automated CNC machinery, high-grade cutting tools, and rigid positioning fixtures eliminates these risks at the source.

• Precision Testing Instruments: Finished equipment undergoes strict geometric verification via Coordinate Measuring Machines (CMM), roundness testers, and profile measuring instruments.
• Statistical Process Control (SPC): Real-time software monitors critical parameters throughout the machining cycle, maintaining a stable process yield rate of 99.995%.
• Inner Bore Accuracy: Automated production lines maintain key tolerances within a strict limit of ≤0.005 mm, ensuring a flawless press-fit onto motor shafts.
• Automated Surface Treatment: Components pass through fully automated electrophoresis and drying systems. The touchless workflow prevents human-induced impact damage, ensures uniform coating thickness, and elevates rust resistance. Alternative finishes like zinc plating, nickel plating, or general electroplating are available upon request.

Why Choose Us

Securing a reliable supply chain requires a manufacturing partner capable of balancing high-volume output with strict quality control. The production ecosystem provides distinct operational benefits for global distribution:

• Verified Market Presence: The manufacturing infrastructure maintains a 65%-75% domestic market share for motor pulleys, alongside a 50% market share for timing pulleys within China, reflecting deep industry integration.
• Massive Production Capacity: With 10 fully automated production lines, the facility achieves a monthly capacity of approximately 5 million units. Regular monthly shipments average 3 to 4 million units, leaving 40% to 60% buffer capacity to accommodate sudden scaling needs.
• Complete Environmental Compliance: Raw material selection utilizes 1215 low-carbon free-cutting steel to minimize hazardous substances. All finished goods carry official RoHS and REACH certification reports.
• Strategic Regional Supply Chain: Situated in Zhejiang Province, a primary industrial manufacturing hub, the factory benefits from localized material procurement, short lead times, and rapid adaptation to engineering adjustments.

Frequently Asked Questions

What transmission ratios can these components support?

The standard transmission ratio generally ranges from 2:1 to 4:1. This ratio can be systematically modified to match specific engine velocities and fluid output demands based on provided technical blueprints.

Can the surface treatment parameters be modified?

Yes. While automated electrophoresis is the standard for high corrosion resistance, alternative electroplating options such as zinc plating and nickel plating can be integrated to meet specific application environments.

How is the accuracy of the machining verified?

Every batch undergoes 100% outgoing inspection. Automated online monitoring systems track tolerances in real time, and physical measurements are verified using advanced Coordinate Measuring Machines (CMM) and roundness testers.

Are customized mechanical drawings accepted?

Yes. The in-house engineering team provides early design optimization based on custom technical drawings, ensuring the final structural parameters match the intended industrial system perfectly.

Global Engineering Partnership

With over two decades of technical expertise in precision mechanical processing, HAWEN continues to advance transmission technology through automated manufacturing and rigorous quality control systems. By managing the entire lifecycle from raw material melt to final automated electrophoresis, HAWEN guarantees that every Variable Speed Water Pump Pulley meets strict international standards, ensuring seamless operation for high-demand industrial systems worldwide.
