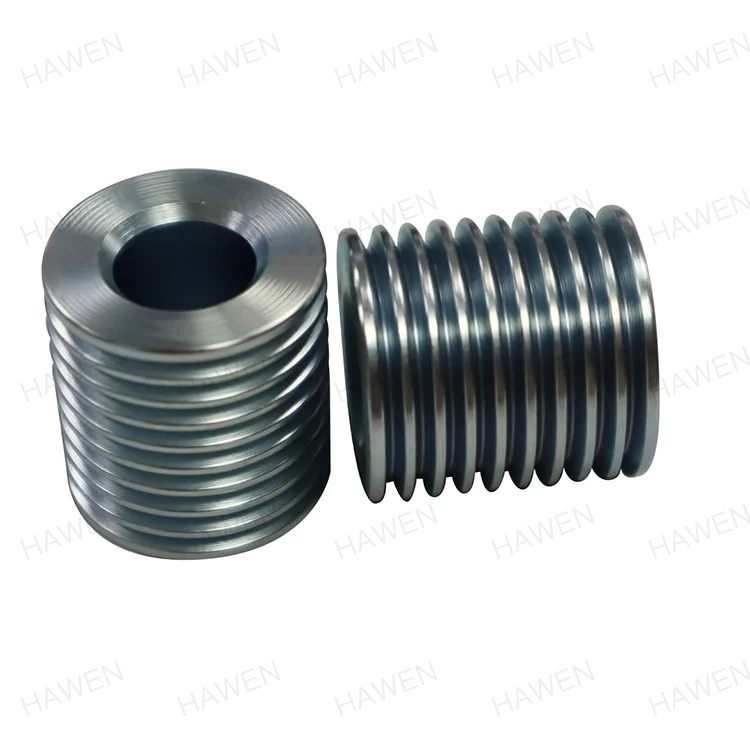

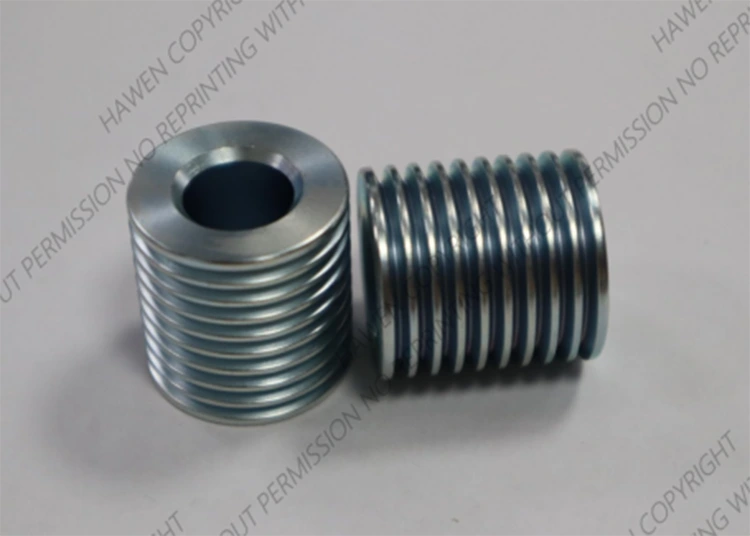

V-Belt Pulley

HAWEN is committed to providing high-quality pulley products with advanced manufacturing experience. Its V-belt Pulley features precise machining and reliable performance. As a professional manufacturer, we offer customized services to meet the needs of buyers in the motor and home appliance industries.

Product Specification

Product Application Fields

HAWEN (Trilon) has been deeply engaged in the universal motor pulley industry for more than 20 years. Our pulleys are precision-machined from 45# Carbon Steel and 1215 Free-Cutting Steel. We first adopted semi-automatic production processes in 2005, and then put our independently developed fully automatic production line into operation in 2012, realizing the integrated production process from bar stock feeding to finished product forming. This upgrade not only reduces labor costs, but also improves production efficiency while ensuring ultra-high product precision.

Compared with the previous semi-automatic processes, our production efficiency has been increased by 40%, and the product non-conformity rate is effectively controlled below 50 PPM. Amid the fierce market price competition, we have achieved cost reduction and efficiency improvement for ourselves, while also helping our customers maximize profits and expand their mutual market share.

Pulleys produced by HAWEN can mitigate load impact during power transmission; the pulley drive features stable operation, low noise and low vibration. Our products boast a high-precision inner bore with a tolerance of ±0.003mm, and the outer circle runout is controlled within 0.03mm, which ensures the stability and durability of the transmission process. We exercise strict control over material hardness and heat treatment processes, and the product surface roughness can reach Ra1.6 or below, effectively improving wear resistance and fatigue strength.

Through fully automatic online testing equipment, every product undergoes a full inspection of dimensions, geometric tolerances and surface defects before delivery to ensure batch consistency. We have long-term supporting cooperation with well-known domestic and foreign motor manufacturers and won extensive industry recognition. With 20 years of technical accumulation, we continuously optimize material utilization and manufacturing processes. Our pulley products have obtained ISO9001 and IATF16949 quality system certifications, ensuring full traceability from raw material warehousing to finished product delivery.

Product Application Equipment and Main Customers

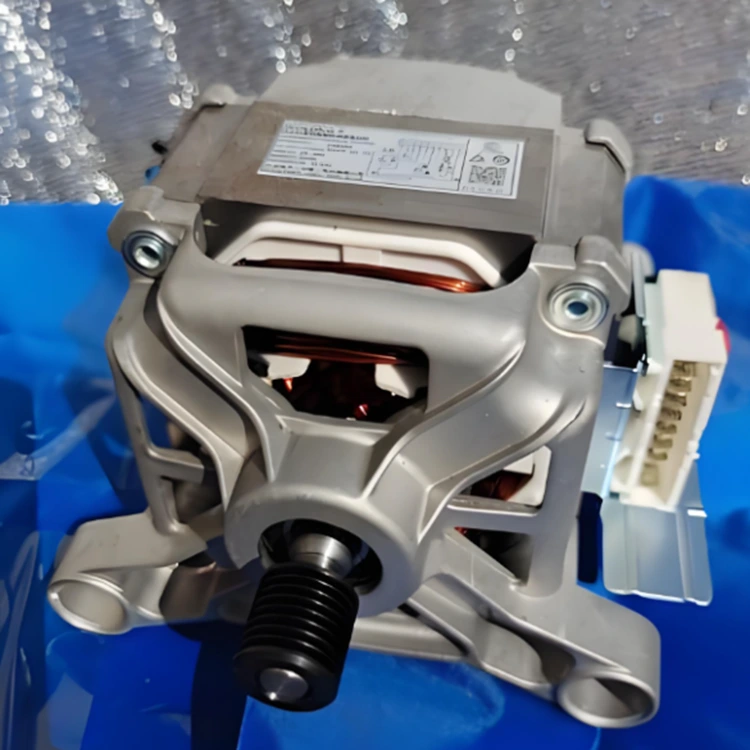

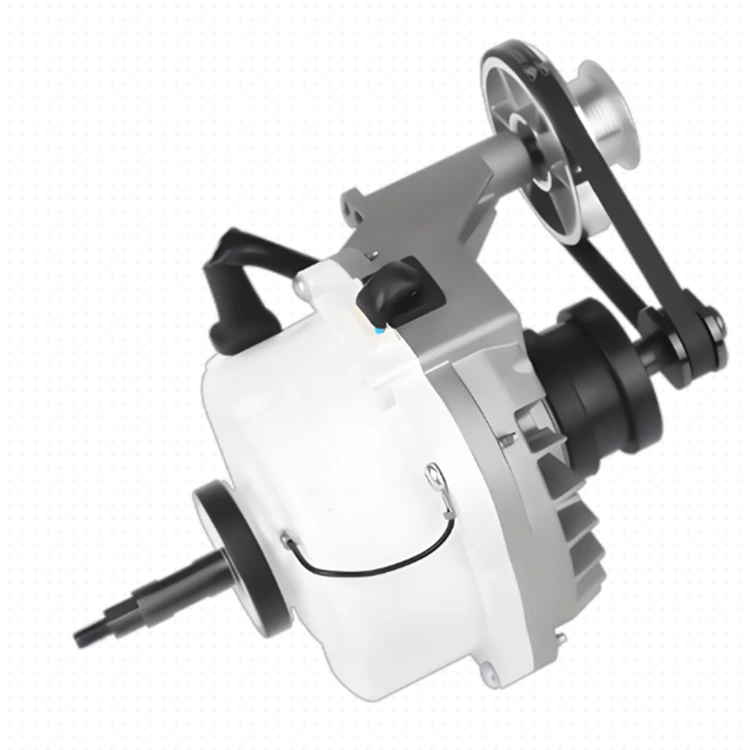

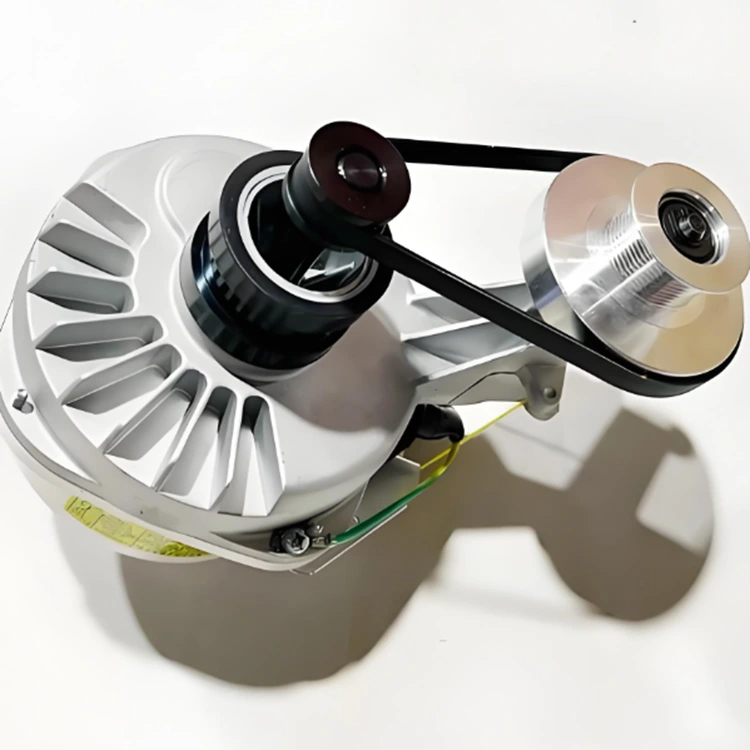

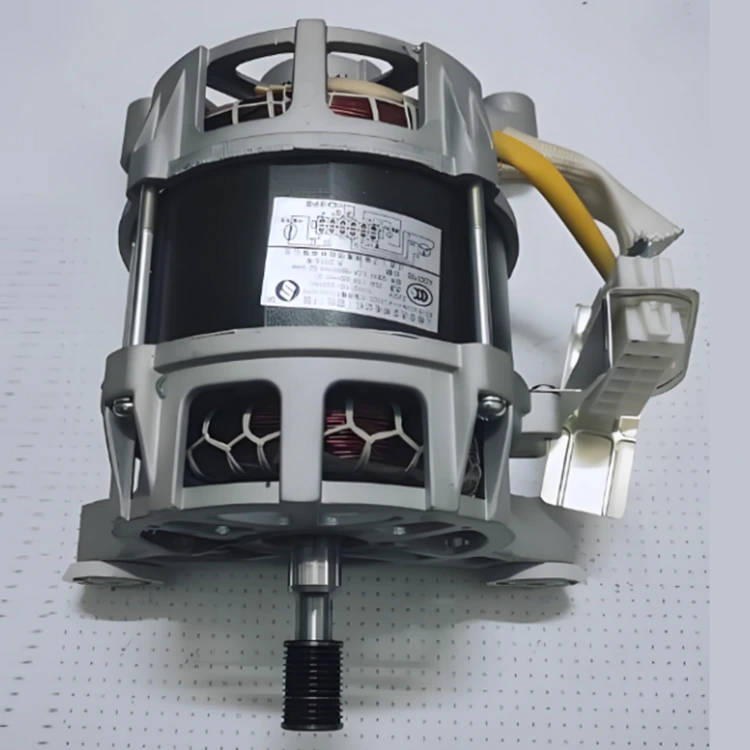

The above products are mainly applied to washing motors and universal motors, with end products being washing machines and tumble dryers. Our core customers include Nidec, Midea, Haier, Whirlpool, Galanz and other renowned enterprises.

Parameter Table 1

Parameter Table 2

Advantages

Strong R&D Capability and Automated Manufacturing

HAWEN is supported by an experienced R&D team and a highly automated manufacturing system. During the co-development of future products with our customers, we focus on real application conditions, analyze system requirements in depth, and continuously optimize solutions to deliver the most suitable and practical designs, earning long-term customer recognition.

100% Online Automatic Quality Control & High-Precision Manufacturing

● Source Quality Control: Strict control from raw material procurement to ensure consistent and stable material performance

● Precision Machining: Automated processing using high-precision equipment, with key tolerances such as inner bore tolerance ≤0.005 mm

● Full-Process Monitoring: Online inspection systems monitor production parameters in real time to detect and correct deviations promptly

● Consistent Product Quality: Elimination of manual operation errors ensures stable performance across every unit

● Ultra-High Qualification Rate: Production yield reaches 99.995%, with a 100% outgoing inspection pass rate

● Efficiency & Cost Optimization: Automated processes reduce manual intervention, improving efficiency while lowering manufacturing costs

Strict Environmental Standards & Sustainable Manufacturing

● Eco-Friendly Materials: Use of 1215 low-carbon free-cutting steel to reduce harmful substances and comply with environmental material standards

● Surface Treatment: Fully automated black oxide process avoids manual contamination, improves corrosion resistance, and reduces waste

● Environmental Certifications: All products comply with ROHS, REACH, and other international environmental regulations

● Green Production Process: Automated production lines reduce energy consumption and waste generation, achieving fully non-contact manufacturing

Fast R&D Response & Customization Capability

Our R&D team responds quickly and is capable of designing customized special-shaped components based on the customer’s industrial system requirements, helping to shorten development cycles and reduce development and testing costs.

Stable and Sufficient Production Capacity

● 10 fully automated production lines

● 1 fully automated surface cleaning line

● 1 fully automated black oxide treatment line

● Monthly capacity of 5 million units

● Current monthly sales of approximately 3–4 million units

● 40%–60% available capacity reserved to support future market demand

Market-Oriented Integrated Solutions

● Cost reduction and efficiency improvement

● Low noise and high qualification rate

● Environmentally compliant

● Greater flexibility for design changes

● Fast and efficient decision-making processes

● Short lead times for raw materials and component procurement

Located in Zhejiang Province, China, a well-known manufacturing hub, HAWEN benefits from a strong and reliable supplier network that enables rapid response to customer needs.

Long-Term Partnership Value

With reliable quality, high efficiency, and proven solutions, HAWEN helps customers avoid unnecessary development detours. Once customers choose HAWEN, they tend to remain long-term partners.

Choosing HAWEN means reducing development costs, testing costs, manufacturing costs, and after-sales service costs throughout the entire product lifecycle.

Material Selection

1215 steel is a low-carbon free-cutting steel with excellent machinability, high precision and superior surface finish, making it ideal for manufacturing precision mechanical components.

Core Performance Characteristics

● Superior machinability: Optimized proportioning of sulfur and other alloying elements significantly improves processing efficiency for turning, milling and other machining processes, reduces tool wear and lowers production costs.

● Mechanical properties: Tensile strength ≥420 MPa (partial data reference ≥42 MPa, subject to specific industry standards); Elongation ≥22%; Hardness ≤160 HB.

Inner Bore Tolerance Control

The inner bore tolerance must reach a high precision of ±0.0025mm, which places extremely stringent requirements on processing equipment and process stability. Such a precise tolerance range demands top-tier accuracy of machining equipment (e.g., CNC machine tools), high-quality cutting tools, and stable process conditions (e.g., temperature control, vibration suppression) — any minor deviation may result in product quality defects.

We adopt advanced manufacturing processes to ensure this precision: realized through high-precision measuring instruments (e.g., Coordinate Measuring Machine (CMM)), strict process control (e.g., Statistical Process Control (SPC)) and a stabilized machining environment, which guarantees batch production consistency.

Application Value: In precision transmission systems, inner bore tolerance directly affects the fitting accuracy between components and shafts, which is critical to transmission efficiency, noise control and product service life — it is a core technical indicator for high-end manufacturing.

Outer Circle Runout Control

The outer circle runout must be controlled within 0.03mm to ensure stability and durability during transmission. We implement strict control over material performance matching, including material hardness and heat treatment processes; the surface roughness of products must reach Ra1.6 or below to effectively enhance wear resistance and fatigue strength.

45# steel (carbon content 0.42%-0.50%) is a widely used medium carbon structural steel in mechanical manufacturing.

Core Performance Characteristics

It features high tensile strength (≥600MPa) and moderate plasticity, with a yield strength of approximately 355MPa, elongation of about 16% and moderate impact toughness. Its hardness is around HB150-200 in the untreated state. The material has a mixed microstructure of pearlite and ferrite, which balances strength and toughness, making it suitable for manufacturing general mechanical components such as shafts, gears, hexagonal pulleys and more.

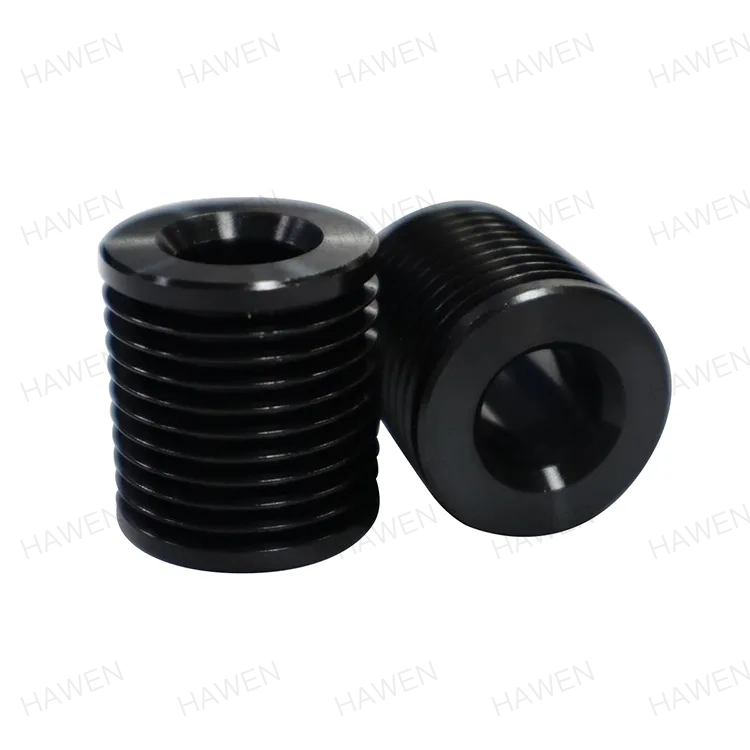

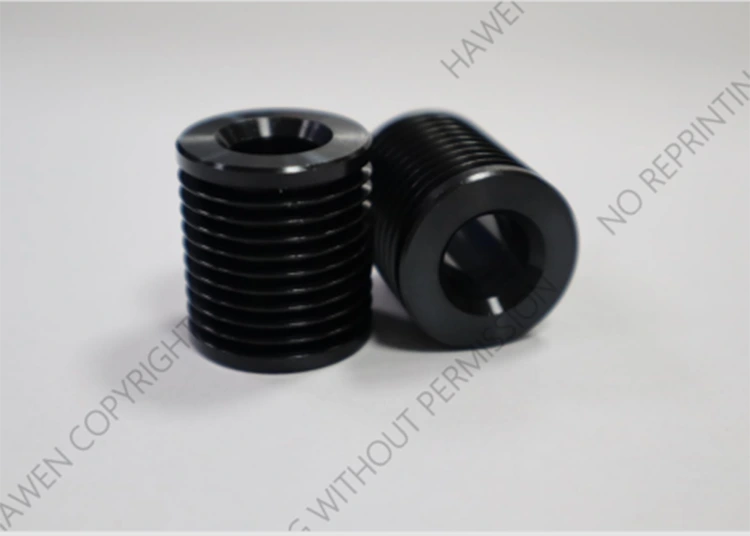

Surface Treatment - Self-Developed Fully Automatic Black Oxidation Production Line

Washing machine pulleys are made of metal materials and operate in the humid working environment of washing machines, which will inevitably cause rust and corrosion of spare parts. Our company has a professional and experienced core R&D team; through decades of practical experience and repeated trials, we have developed a customized surface treatment formula for this product, and built a fully automatic black oxidation production line equipped with an integrated fully automatic drying system.

There is no manual contact with products throughout the entire process, which not only enhances the corrosion resistance of products to meet industry standards, but also reduces the risk of product collision caused by human contact and ensures the operational stability of products.

Other electroplating processes such as general electroplating, galvanizing and nickel plating are also available and can be fully customized according to customer requirements.

Environmental Requirements

All products meet strict environmental protection requirements in terms of raw material selection and surface treatment processes, and are supported by official ROHS and REACH certification reports.

R&D & Customization Capabilities

Our professional R&D and technical team has 20 years of in-depth experience in the pulley industry. We can fully meet customer requirements and solve their technical pain points according to their specific application scenarios and demands, and customize special-shaped pulleys for personalized industrial systems.

We warmly welcome customization per provided drawings, including customized products with designated raw materials and surface treatment processes. We also extend a sincere invitation to overseas customers to visit our manufacturing factory.

Synergy from the New Organizational Structure

The synergy brought by the new organizational structure enables HAWEN to fully meet customer expectations on the basis of in-depth and effective cooperation.

Domestic Customers

Our long-term strategic partners include Midea, Whirlpool, Haier, Sanjiang Electric, LG Tianjin, Nidec and other renowned enterprises, with a stable cooperative relationship spanning more than a decade. Up to now, our company has achieved a market share of over 95% for this product in China.

Our pulleys are applied to universal motors, induction motors, brushless permanent magnet motors and DD direct drive motors. We have established cooperative partnerships with well-known motor manufacturers including Welling Motor, Yongchang Electric, Nanyang Motor and more.
