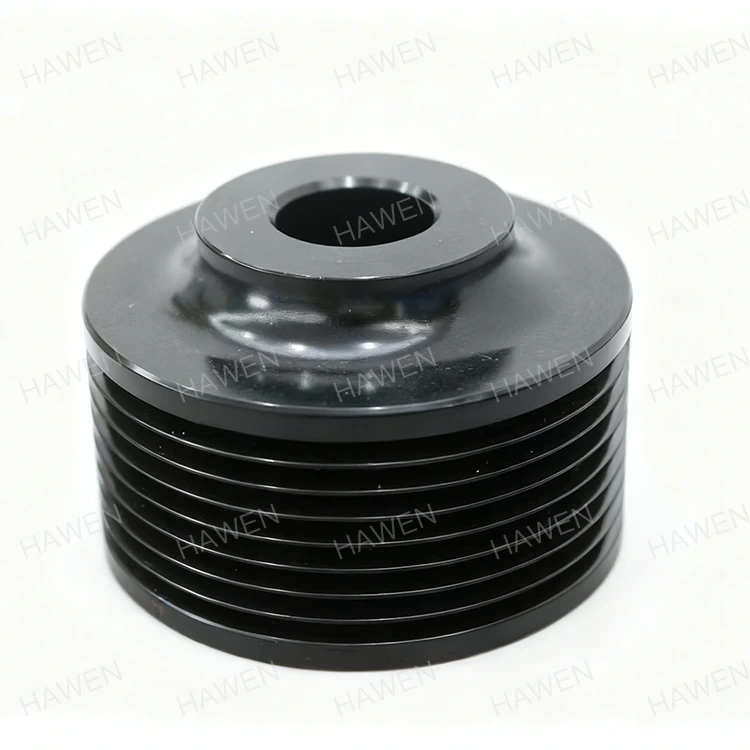

WebType Pulley

Structural Form and Design Logic

The WebType Pulley adopts an integrated web structure, connecting the rim and hub through a continuous plate-like web. Compared with spoked structures, this design reduces structural discontinuities, creating a more continuous load-bearing path when the pulley is subjected to radial and torsional loads. It is suitable for transmission systems that require high rigidity and structural stability.

The web thickness, rim, and hub are typically integrally formed or assembled with high precision, providing higher overall stiffness than open-frame designs. This effectively controls deformation during medium-to-high speed operation.

Practical Impact of Structure on Performance

The closed-web structure of the Web Type Pulley delivers better dynamic stability during operation. The continuous load-bearing design reduces the risk of localized vibration, which is more favorable for the long-term performance of bearings and belts. At the same time, the integral structure helps maintain the geometric accuracy of the belt grooves, reducing the likelihood of uneven belt wear.

During power transmission, this structure tolerates torque fluctuations well, making it suitable for industrial equipment that operates continuously for long periods.

Material Configuration and Manufacturing Processes

Web Type Pulleys usually undergo dynamic balancing during manufacturing to meet stability requirements at medium-to-high speeds.

Reliability and Service Life Analysis

Due to the continuous web structure, Web Type Pulleys are less prone to stress concentration under repeated loading. Compared with lightweight structures, they are better suited for high-load, long-duration operating conditions. They demonstrate stable structural durability especially in systems with low start-stop frequency but long single-run times.

Typical Application Scenarios

Web Type Pulleys are commonly used in the following environments:

Industrial fans and water pump systems

Machine tool main drive units

Reducers and power output ends

Continuous-operation equipment in mining and metallurgy

They are often selected for applications that require stable operation, high rigidity, and long service life.

Selection and Customization Recommendations

When selecting a Web Type Pulley, factors such as belt type, speed range, load level, and shaft connection method should be considered. Customization options include outer diameter, groove type, web thickness, and shaft hole configuration, all of which can be tailored to meet specific application requirements.
