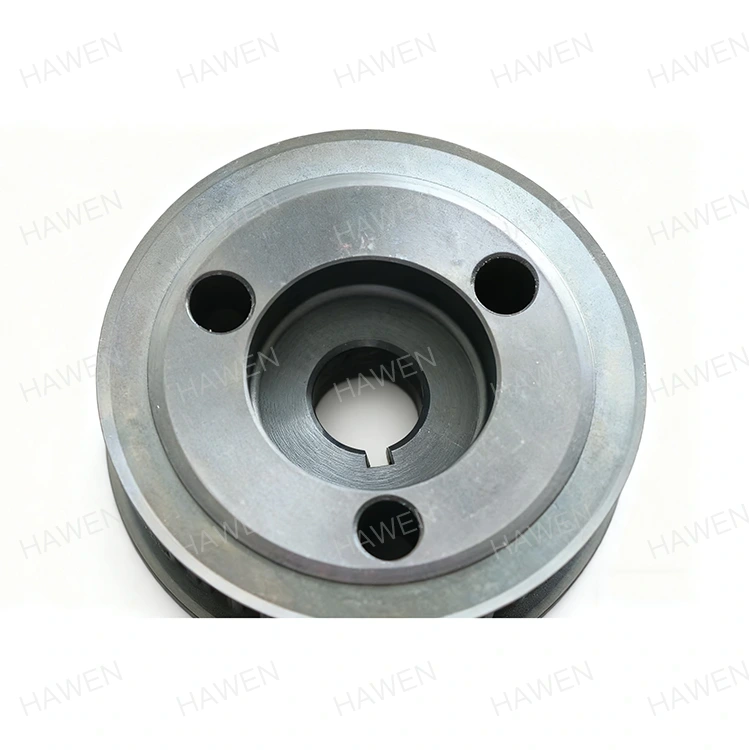

Cast Iron Pulley

Cast Iron Pulley is a commonly used industrial transmission component, manufactured from high-strength gray cast iron or ductile cast iron. Its main function is to transmit power from a motor or power source to a mechanical load via a belt, achieving efficient and stable power transmission.

The cast iron material provides the pulley with excellent rigidity and wear resistance, ensuring stability during long-term operation. It is widely used in industrial equipment such as fans, pumps, compressors, and conveyors.

Structure and Design Features

The Cast Iron Pulley consists of a rim, a web, and a hub:

Rim: Provides the belt contact surface, ensuring efficient transmission and stable tension.

Web: Bears radial loads and enhances the rigidity of the pulley body.

Hub:  Provides a tight fit with the shaft for secure mounting.

The cast iron pulley body can be customized in thickness and diameter according to the equipment load and rotational speed, ensuring that no deformation or eccentricity occurs during long-term operation.

Performance Advantages

High Wear Resistance: Cast iron has high hardness, and the pulley groove surface is wear-resistant, extending belt life.

High Stability: Weight and rigidity ensure smooth high-speed operation of the pulley.

Strong Vibration Resistance: Even force distribution on the pulley body reduces vibration and noise.

Wide Load Range: Can withstand medium to high load mechanical transmission.

These advantages make Cast Iron Pulleys reliable and long-lasting power transmission components in industrial production.

Installation and Maintenance

Moderate pulley weight facilitates handling and installation.

Modular design supports quick assembly, disassembly, and belt replacement.

CNC machining ensures the accuracy of the pulley groove, rim, and shaft bore, eliminating the need for frequent adjustments.

Simple daily maintenance and long service life reduce downtime costs.

Typical Application Scenarios

Cast Iron Pulleys are widely used in various mechanical transmission systems, including:

Industrial fan, water pump, and compressor drives

Conveying machinery and packaging equipment

Agricultural machinery and light to medium-duty power equipment

CNC machine tools and machining center drives

In low to medium speed and medium to high load environments, Cast Iron Pulleys provide stable and reliable power transmission, meeting the requirements of industrial production for efficiency and durability.

Summary

Based on cast iron material and combined with precision machining technology, Cast Iron Pulleys possess high rigidity, wear resistance, and stability. They are suitable for industrial machinery and power transmission systems, making them the preferred solution for high-reliability pulleys.
