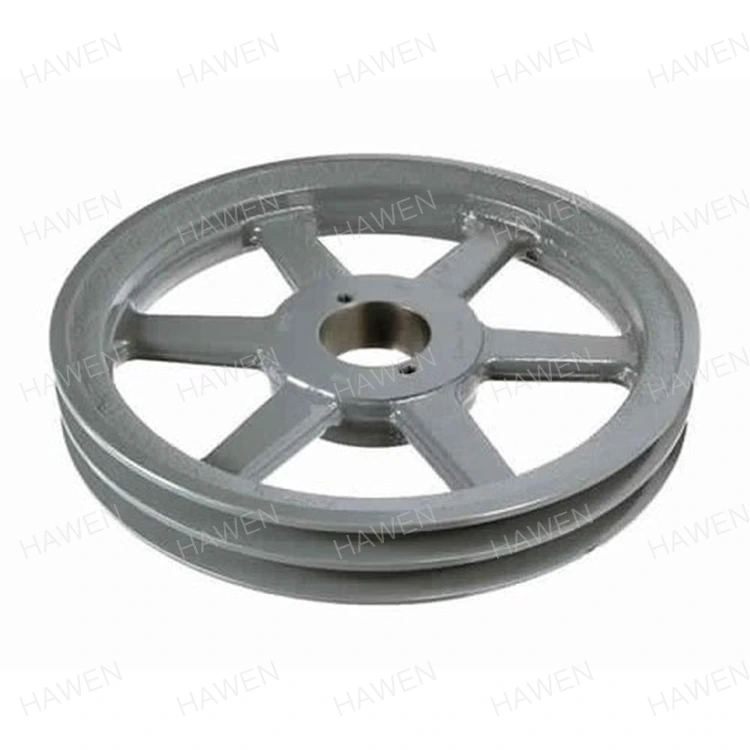

Large Diameter Spoked Pulley For Conveyors

Spoked Structure for Efficient Belt Transmission

A Large Diameter Spoked Pulley For Conveyors consists mainly of a rim, spokes, and hub. The rim contacts the belt and transfers rotational force, while the spokes connect the rim with the central hub and distribute the transmitted load. The hub is machined to match the shaft configuration for stable installation.

The spoke structure removes material from areas that contribute less to the basic transmission function. This helps reduce the pulley's rotational inertia compared with a solid design.

Lower rotational inertia can be useful in equipment that requires frequent starting, stopping, acceleration, or speed changes. The pulley can respond more readily to changes in rotational speed while reducing unnecessary rotating mass.

Product Features

Materials and Manufacturing Processes

Different transmission systems have different requirements for strength, weight, wear resistance, and operating conditions. HAWEN can select suitable materials and manufacturing methods according to the application.

Material selection can take into account transmission power, rotational speed, equipment structure, weight requirements, and operating environment. Related options include cast iron pulley, aluminum alloy pulley, and steel pulley constructions.

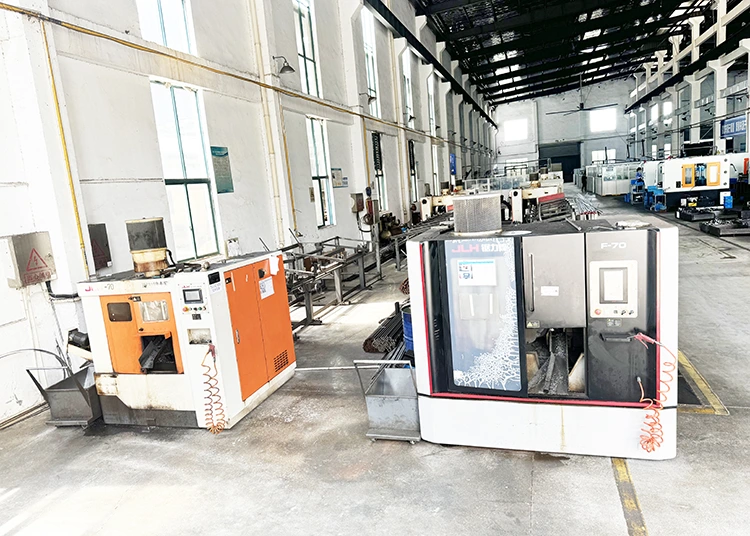

Precision Machining for Belt and Shaft Fit

The performance of a belt pulley depends not only on its material but also on the accuracy of its working dimensions. For the Spoked Pulley, precision CNC machining can be applied to critical areas such as:

Accurate groove geometry helps maintain proper belt contact, while controlled concentricity helps support stable rotation. For replacement or customized pulleys, customers can provide existing pulley dimensions, technical drawings, or samples for evaluation before production.

Applications in Belt Transmission Systems

Large Diameter Spoked Pulley For Conveyors can be used in various mechanical transmission systems where belt-driven power transfer is required.

It is also suitable for light- and medium-duty mechanical transmission equipment where lower rotating weight and effective heat dissipation are beneficial. For related configurations, see V-belt pulley, taper lock pulleys, and web type pulley.

Pulley Selection and Customization

A pulley should be selected according to the actual transmission system rather than by diameter alone. The belt, shaft, speed, transmission requirements, and available installation space all affect the appropriate pulley configuration. HAWEN can support customization based on factors including:

Customers can provide a drawing, existing sample, or basic equipment parameters. The technical team can review the required dimensions and confirm the appropriate manufacturing approach before production.

From Sample Development to Batch Production

HAWEN supports the complete process from customized pulley development to mass production. For a new Spoked Pulley project, the process can include:

Sample validation allows the pulley to be checked against the actual transmission system before large-scale production. Once the design and specifications are confirmed, the same production requirements can be applied to subsequent batches to maintain consistency.

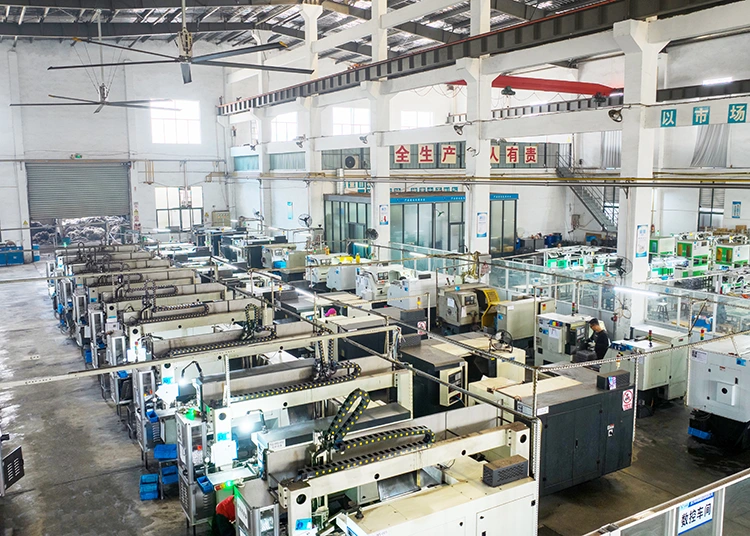

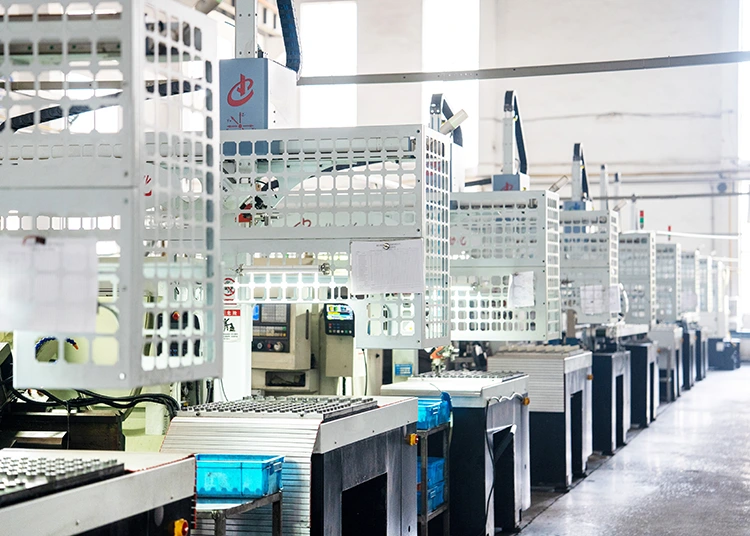

HAWEN Pulley Manufacturing Capability

HAWEN is the wholly opened international trade subsidiary of Zhejiang Telilong Precision Machinery Co., Ltd., a manufacturer with a history in precision mechanical component production dating back to 2004.

Telilong has specialized in motor pulley products and customized mechanical components for many years and has established long-term cooperation with motor manufacturers including Midea, Gree, LG, Nidec, Huilu, and Wolong. For customized Large Diameter Spoked Pulley For Conveyors projects, HAWEN can coordinate international trade, technical communication, sample development, and batch supply according to project requirements.
