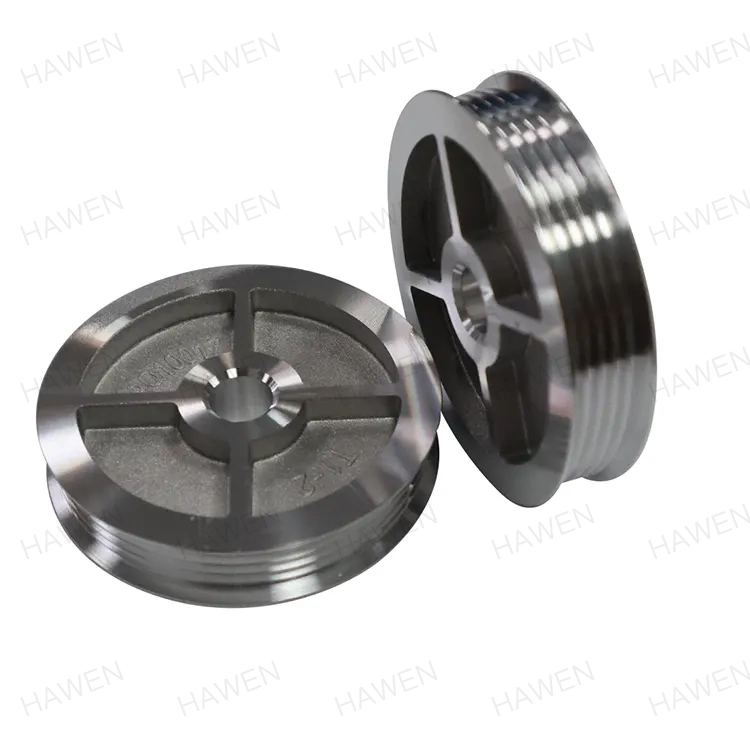

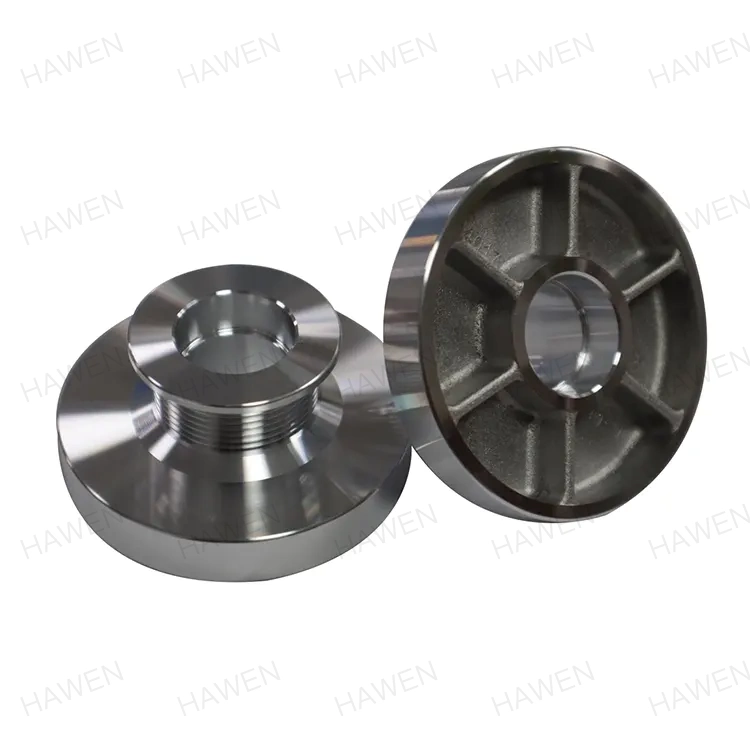

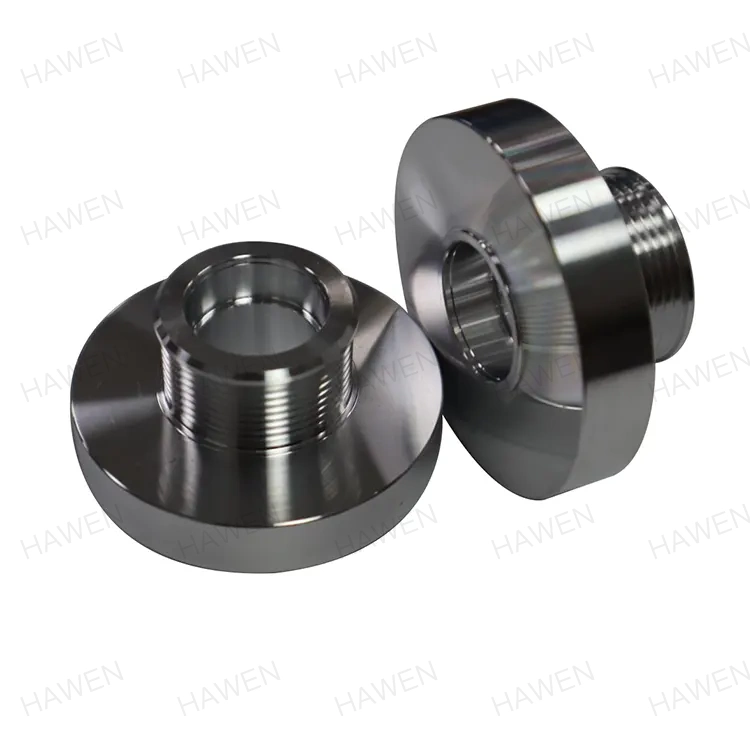

Aluminum Alloy Pulley

Application Scenarios

The Aluminum Alloy Pulley is a commonly used component in mechanical transmission systems, suitable for both timing belt and traditional belt drives.

Its lightweight design and excellent thermal conductivity make it widely used in fans, pumps, compressors, packaging machinery, and light-to-medium industrial equipment.

Aluminum alloy pulleys perform stably in humid or chemically active environments, reducing maintenance costs, and are also suitable for transmission systems that require efficient heat dissipation.

Material Characteristics

Aluminum Alloy Pulleys are typically made from ADC12 aluminum alloy, which belongs to the Al-Si-Cu alloy system. Its main chemical composition is as follows:

Aluminum: Remainder

Silicon: 9.5%–12.0%

Copper: 1.5%–3.5%

ADC12 offers lightweight construction, corrosion resistance, and good thermal conductivity, ensuring stable and reliable operation over long periods while reducing the risk of overheating.

Mechanical Properties

These mechanical properties ensure that the Aluminum Alloy Pulley operates stably over long periods in light-to-medium load equipment.

Performance Advantages

Lightweight design: Lighter than cast iron or steel pulleys, reducing overall system inertia

Excellent heat dissipation: Aluminum conducts heat quickly, helping to lower belt and pulley temperatures

Strong corrosion resistance: Suitable for humid or light chemical environments, reducing maintenance frequency

Stable operation: High machining accuracy and good concentricity between grooves and shaft hole minimize belt misalignment and uneven wear

These features make the Aluminum Alloy Pulley reliable in high-speed or continuous-operation equipment.

Installation and Maintenance

Can be directly installed on standard shafts using keyway or taper lock bushing

Lightweight body allows easy handling and adjustment

Modular design simplifies routine inspection and belt replacement

Surface treatment enhances corrosion resistance and extends service life

Summary

Based on ADC12 aluminum alloy, the Aluminum Alloy Pulley combines lightweight construction, heat dissipation, corrosion resistance, and stable mechanical performance. It is suitable for both timing belt and conventional belt drive systems, and is particularly well-suited for applications that require reduced weight, efficient heat dissipation, and strong environmental adaptability.
