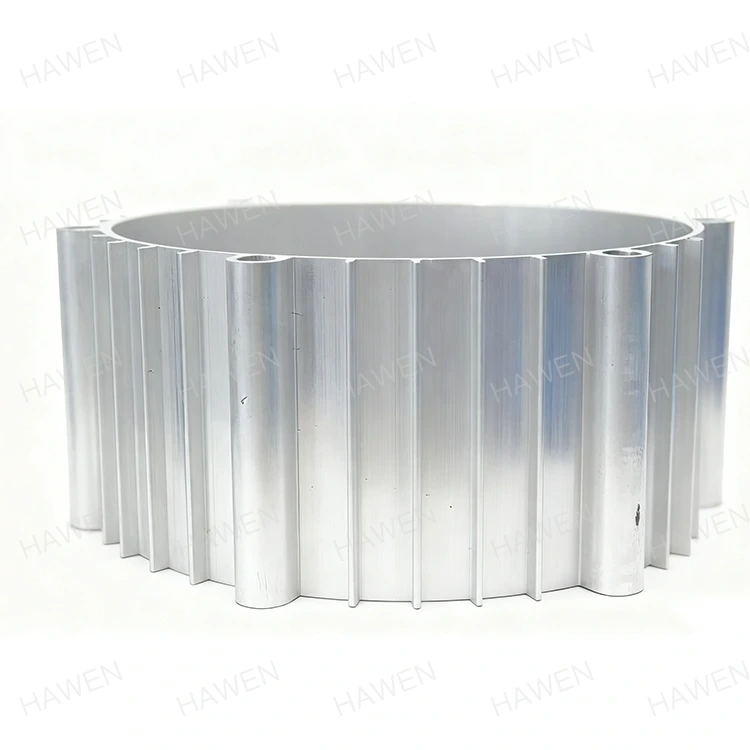

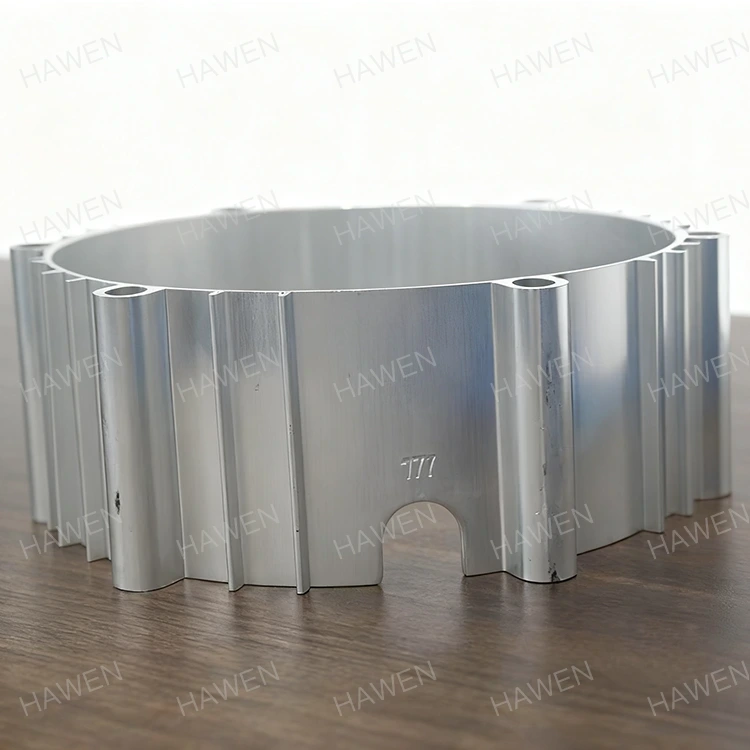

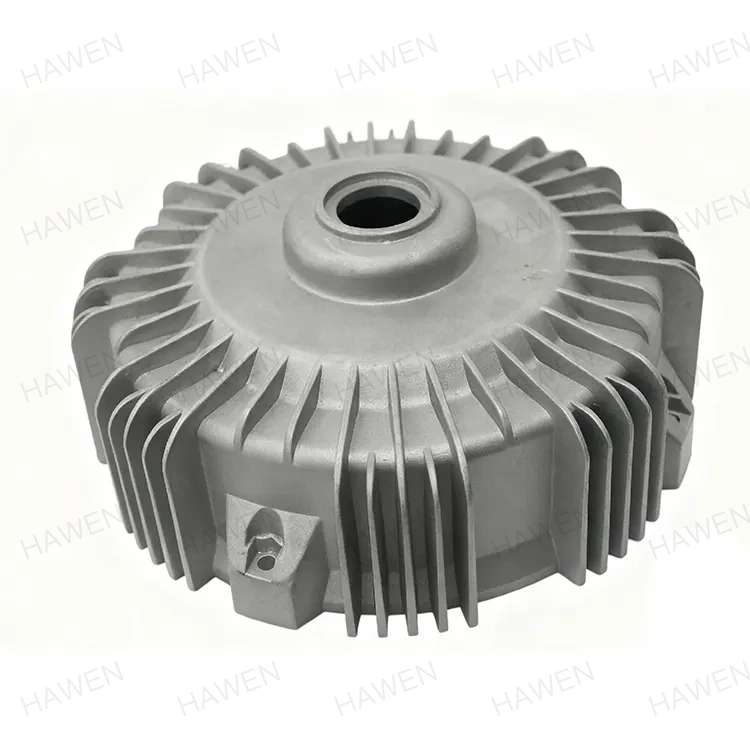

DC Motor Aluminum Housing

Challenges in DC Motor Applications

DC motors are widely used in applications requiring precise speed control, fast response, and compact structures. However, their operating characteristics also introduce several challenges:

Continuous heat accumulation in confined spaces

Sensitivity to alignment errors affecting efficiency and noise

Exposure to vibration, dust, and humid environments

Increasing demand for lightweight designs in mobile and automated systems

The DC Motor Aluminum Housing is engineered to address these challenges by combining thermal performance, structural accuracy, and environmental protection.

Engineering Solutions Built into the Housing

The DC Motor Aluminum Housing is designed as an integrated mechanical solution rather than a simple enclosure.

Key engineering considerations include:

Optimized heat paths that transfer heat from stator and windings directly to the housing surface

High-precision bearing seats ensuring stable shaft alignment under dynamic loads

Reinforced mounting interfaces for consistent positioning in automated equipment

Compact wall structures that maintain rigidity while minimizing material usage

This design approach supports both brushed and brushless DC motor architectures.

Key Performance Indicators

Integration into DC Motor Systems

The DC Motor Aluminum Housing is commonly integrated into:

Servo and Brushless DC Motors

Used in automation systems requiring precise positioning and repeatability

Electric Vehicles & Mobility Systems

Applied in auxiliary motors, drive modules, and cooling systems

Robotics & Automated Equipment

Supports compact layouts in robotic arms and AGV systems

Industrial Control & Actuation

Valves, linear actuators, and motion control units

Suggested visuals:

DC motor cross-section with aluminum housing

Servo motor assemblies

Robotic and automation equipment installations

Manufacturing Process & Consistency Control

Each DC Motor Aluminum Housing is manufactured under controlled and repeatable processes:

Selection of certified aluminum alloys suitable for DC motor operating loads

Die casting or low-pressure casting for structural integrity

CNC machining of bearing seats, mounting faces, and interfaces

Surface finishing such as anodizing or coating for durability

In-process inspection and final dimensional verification

This process ensures batch-to-batch consistency for OEM and mass-production needs.

Practical Value for OEMs and System Integrators

Choosing a DC Motor Aluminum Housing delivers measurable advantages:

Improved thermal stability extends motor lifespan

Reduced motor weight enhances system responsiveness

Accurate alignment lowers energy loss and maintenance needs

Flexible customization shortens development cycles

Recyclable material supports sustainability requirements

Quality, Compliance & Reliability

Designed to meet IEC and industry-specific DC motor standards

RoHS and REACH compliant materials and processes

Suitable for indoor and semi-outdoor industrial environments

Supported by ISO-based quality management systems

Closing Statement

The DC Motor Aluminum Housing provides a robust mechanical foundation for modern DC motor systems. By combining efficient heat dissipation, precise structural control, and lightweight design, it supports stable motor performance across automation, mobility, and industrial applications, while meeting the evolving demands of OEM manufacturers.
