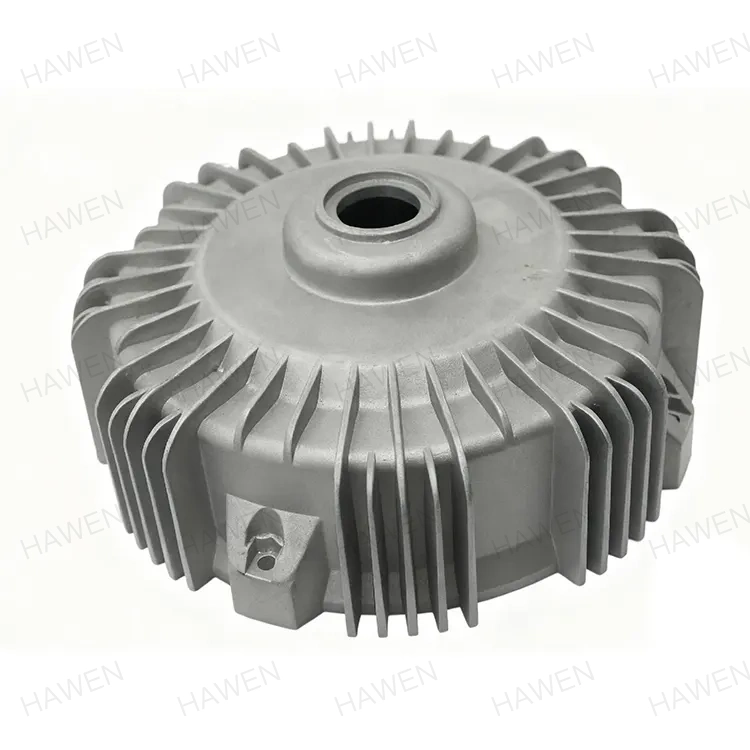

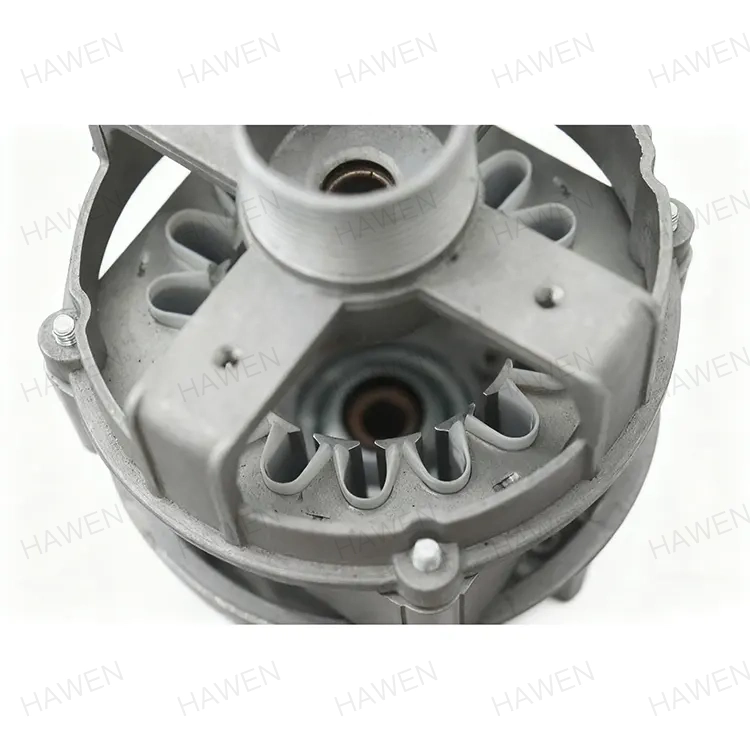

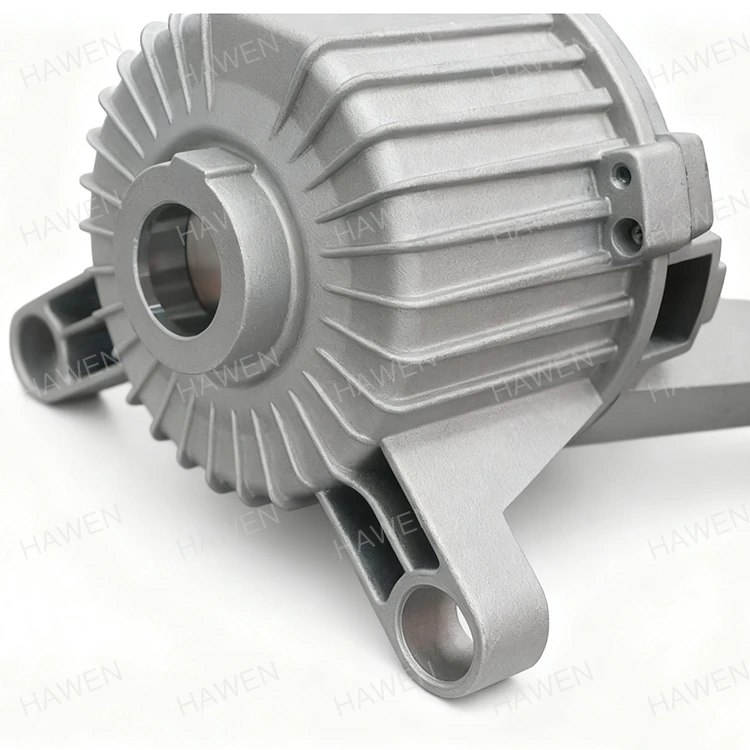

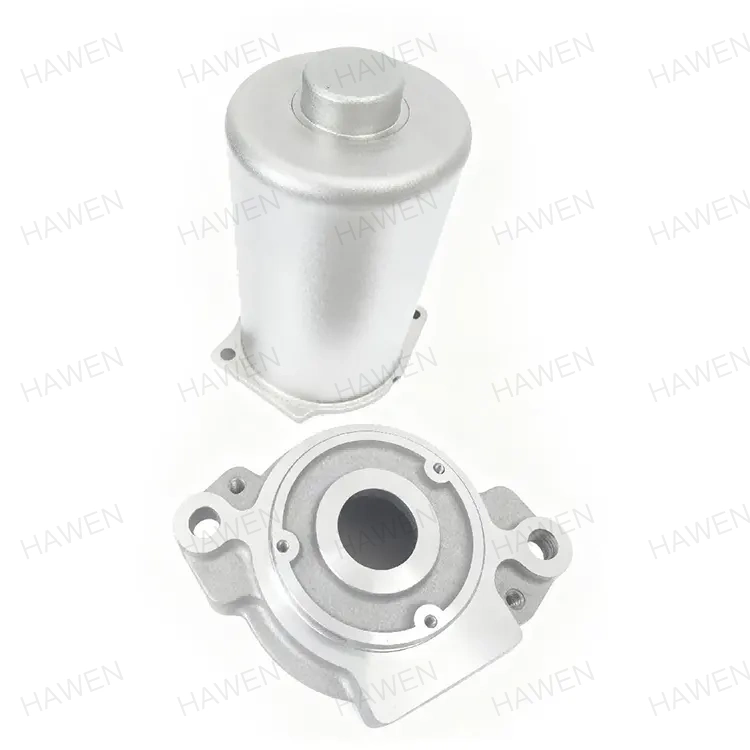

AC Motor Aluminum Casing

How It Works in an AC Motor System

The AC Motor Aluminum Casing functions as the primary structural enclosure for AC motors, integrating mechanical support, heat dissipation, and environmental protection into a single component. During motor operation, electrical energy is converted into mechanical motion, generating continuous heat and vibration. The aluminum casing absorbs and transfers this heat outward while maintaining precise alignment of internal components such as stators, rotors, and bearings.

Unlike steel or cast iron housings, aluminum casings respond faster to thermal changes, helping AC motors maintain stable operating temperatures under variable loads.

Structural Design & Engineering Logic

The design of an AC Motor Aluminum Casing focuses on balancing strength, cooling efficiency, and manufacturability.

Key structural elements include:

Integrated cooling fins to increase surface area and enhance natural or forced convection

Precision-machined bearing seats to ensure shaft alignment and reduce vibration

Reinforced mounting feet or flanges to improve rigidity during continuous operation

Optimized wall thickness to maintain strength while minimizing weight

This structure supports both standard IEC frame motors and customized motor designs.

Performance Characteristics

These characteristics make the casing suitable for long-duty-cycle AC motors.

Industry Compatibility & Typical Applications

The AC Motor Aluminum Casing is widely used across multiple industries due to its adaptable design:

Industrial Machinery

Conveyors, pumps, fans, and compressors

Gear motors and variable-speed drive systems

HVAC Systems

Air handling units

Cooling fans and blowers

Energy & Infrastructure

Wind power auxiliary motors

Water treatment and pumping stations

Home Appliances & Commercial Equipment

Washing machines, dryers, and air conditioners

Commercial ventilation systems

Recommended visuals:

AC motor assembly with aluminum casing

Industrial fan motors

HVAC motor installations

Manufacturing Process & Quality Control

Each AC Motor Aluminum Casing is produced under controlled manufacturing conditions to ensure consistency and reliability:

Aluminum alloy selection based on mechanical and thermal requirements

Low-pressure die casting or gravity casting for structural integrity

CNC machining for bearing bores, flanges, and mounting interfaces

Surface treatments such as powder coating or anodizing for durability

Dimensional inspection using CMM equipment

Process traceability from raw material to finished casing

These controls support stable batch quality for large-scale motor production.

Commercial & Operational Value

From a system-level perspective, AC Motor Aluminum Casing delivers measurable benefits:

Reduced overall motor weight lowers transportation and installation costs

Improved heat dissipation enhances motor efficiency and extends service life

Corrosion resistance minimizes maintenance in humid or outdoor environments

Flexible manufacturing supports OEM customization and rapid iteration

Recyclable material aligns with environmental and sustainability goals

Compliance & Reliability

Manufactured in accordance with IEC motor housing standards

Supports RoHS and REACH compliance for international markets

Suitable for applications requiring non-sparking materials

Compatible with ISO-based quality management systems

Conclusion

The AC Motor Aluminum Casing provides a well-engineered balance of thermal performance, structural stability, and lightweight design. It supports reliable AC motor operation across industrial, HVAC, energy, and appliance sectors, while enabling manufacturers to improve efficiency, reduce costs, and meet global compliance requirements.
