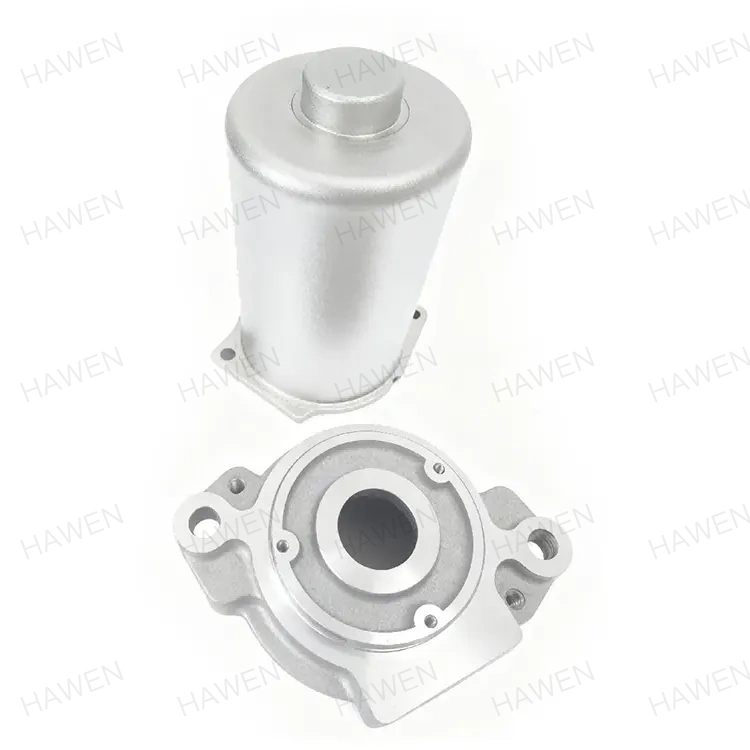

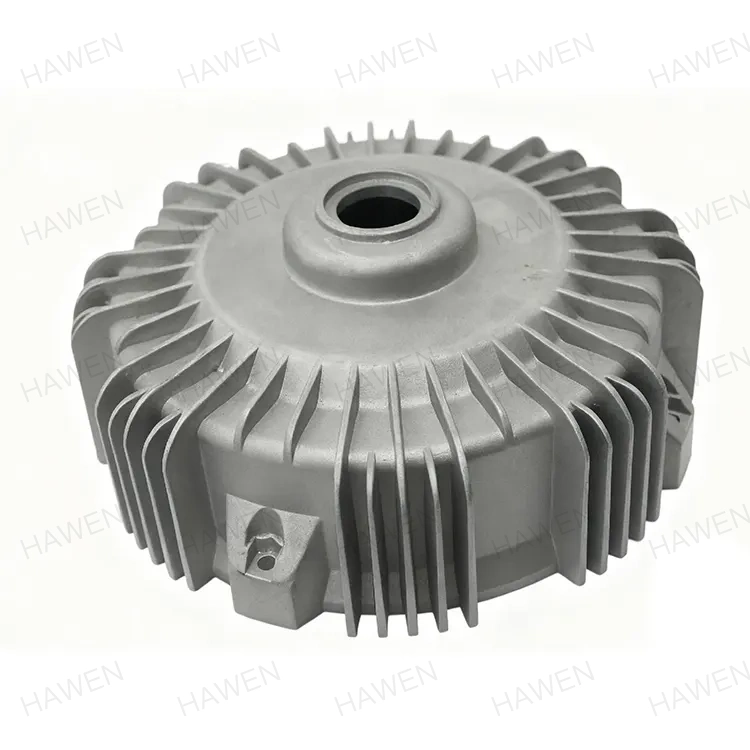

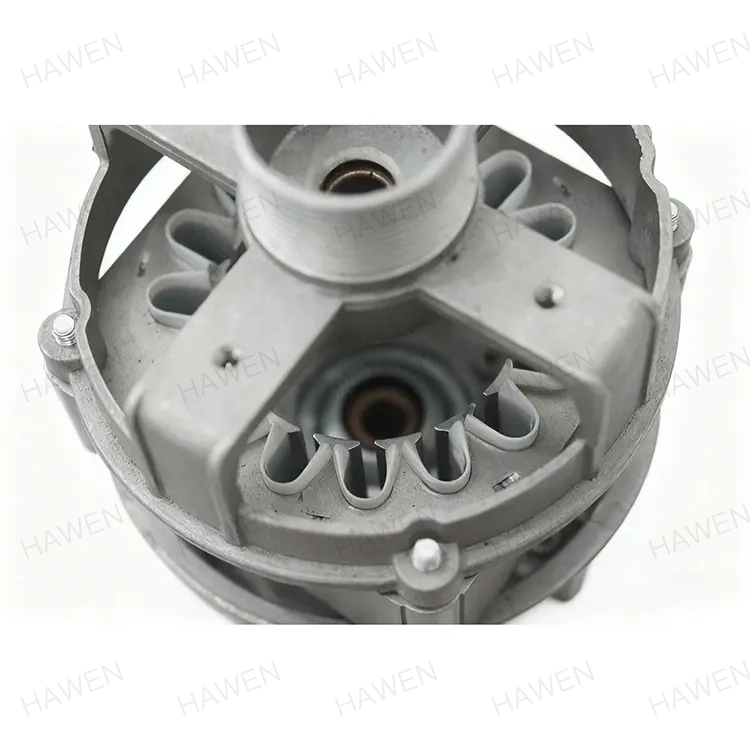

Aluminum End Bracket

Stable Motor Operation Starts at the End

The Aluminum End Bracket is a key structural component used at the end of electric motors to support bearings, maintain shaft alignment, and ensure smooth rotation. While often overlooked, the performance of an entire motor can be affected by the precision and stability of this component.

Designed for modern motor systems, aluminum end brackets combine lightweight construction, dimensional accuracy, and long-term reliability.

Why Aluminum End Bracket Matters

In motor assemblies, even small alignment deviations can lead to:

Increased vibration and noise

Premature bearing failure

Reduced motor efficiency

Higher maintenance costs

A well-designed Aluminum End Bracket helps prevent these issues by providing a stable and accurately machined bearing support structure.

Key Advantages

Lightweight Without Sacrificing Strength

Aluminum alloy construction significantly reduces overall motor weight while maintaining sufficient mechanical rigidity.

High Machining Accuracy

CNC-machined bearing bores and mounting surfaces ensure precise concentricity between the rotor and stator.

Excellent Heat Dissipation

Aluminum’s thermal conductivity helps dissipate heat generated around bearing areas, improving service life.

Corrosion Resistance

Suitable surface treatments protect the bracket in humid or industrial environments.

Typical Applications

The Aluminum End Bracket is widely used in:

AC motors

DC motors

Brushless motors

Servo motors

HVAC motor systems

Industrial automation equipment

Pumps, fans, and compressors

Both standard and customized motor designs can be supported.

Manufacturing & Quality Control

Each Aluminum End Bracket is produced through a controlled manufacturing process:

Aluminum alloy selection based on mechanical and thermal requirements

Casting process for consistent structural integrity

CNC machining of bearing seats, mounting holes, and reference surfaces

Surface finishing such as anodizing, powder coating, or natural oxidation

Dimensional inspection and bearing fit verification

This ensures stable quality for mass production and OEM supply.

Customization Options

We support customization according to your motor design:

Bearing size and tolerance

Shaft alignment requirements

Mounting hole patterns

Surface treatment and color

Logo or identification marking

Drawings or samples are welcome for evaluation.

Compatibility & Standards

Designed to match aluminum motor housings

Compatible with IEC motor structures

RoHS & REACH compliant materials

Suitable for continuous-duty motor operation

Why Choose Our Aluminum End Bracket

OEM & ODM manufacturing experience

Stable batch consistency

Engineering-oriented design support

Cost-effective aluminum solutions

Reliable delivery for long-term cooperation

Request a Quote

If you are looking for a reliable Aluminum End Bracket supplier for electric motors, please contact us with your drawings, specifications, or application requirements. Our engineering team will support your project from design to production.
