Timing Pulley For Automotive Engine

HAWEN operates as a trusted global supplier of the Timing Pulley For Automotive Engine, designed for vehicle generators and engine systems. Backed by 20 years of manufacturing experience, our factory utilizes high-grade 45# carbon steel to process drive units featuring electrophoretic coatings. These highly stable components guarantee a constant transmission ratio, high shock absorption, and long-term corrosion resistance in severe operating environments.

Synchronous Transmission Dynamics in Modern Power Systems

Modern industrial and automotive power systems depend heavily on the efficiency of power transmission layouts to synchronize rotational motion. High-efficiency synchronous belt drives require precise teeth engagement to eliminate slippage and guarantee a constant transmission ratio. For high-performance motor assemblies, deploying a qualified Timing Pulley For Automotive Engine ensures a constant transmission ratio and slip-free performance, optimizing system synchronization while lowering mechanical drag.

Operating environments in automotive engines require mechanical components that exhibit excellent shock absorption, sound damping, and high-speed stability. Standard friction-reliant belts often suffer from energy loss due to slippage, but tooth-meshing dynamics achieve transmission efficiencies exceeding 98%. By eliminating the need for continuous lubrication, these synchronous configurations reduce operational maintenance and lower long-term operating costs across diverse sectors.

Mechanical Tooth Meshing and Rotational Sync

The core mechanic of synchronous power transmission relies on the precise geometry of the mating profiles. Because there is no slip, the driven shaft rotates in perfect synchrony with the drive shaft. This level of control is essential in internal combustion layouts where the timing of the valves and pistons must align perfectly to prevent engine interference or combustion inefficiencies.

Performance and Durability Indicators

Dynamic performance requires that rotational units prevent vibration-induced stress on the belts. Under severe load shifts, the component must absorb rapid torque variations without tooth wear or degradation. Achieving this level of mechanical stability requires utilizing highly durable carbon steel combined with specialized surface treatments to resist friction-induced heat and environmental moisture.

Engineering Parameters and Material Metallurgy

Selecting the correct material composition determines how well a dynamic component handles continuous fatigue and torsional load. Structural components must maintain mechanical stability over hundreds of thousands of operating cycles under elevated operating temperatures.

Medium Carbon Steel Properties

To deliver high tensile strength and impact durability, 45# carbon steel is utilized as the primary raw material. This high-quality medium carbon structural steel features a carbon content of approximately 0.42% to 0.50%, with a material density of 7.85 g/cm³. The specific chemical composition of this material grade is defined by:

• Manganese (Mn) content: 0.50% to 0.80%
• Silicon (Si) content: 0.17% to 0.37%
• Strictly managed phosphorus and sulfur levels to prevent brittleness
• Tensile strength: Not less than 600 MPa
• Yield strength: Not less than 355 MPa
• Elongation at break: Not less than 16%
• Reduction of area: Not less than 40%

Heat Treatment and Stress Relief Processes

Due to its specific chemical design, 45# carbon steel requires controlled heating processes to achieve its optimal balance of toughness and wear resistance. During the manufacture of the Timing Pulley For Automotive Engine, managing the quenching and tempering parameters is essential to establish stable wear resistance. Standard thermal processing includes quenching at approximately 840°C followed by tempering between 560°C and 600°C, raising the final surface hardness to a range of HRC 22-34 to resist frictional wear.

Geometric Tolerances and Manufacturing Processes

To avoid rotational imbalances that lead to rapid belt wear and belt-tracking errors, components must adhere to precise geometric standards. The table below outlines the core technical specifications and tolerance comparisons for the manufactured components:

Precision Machining Environment and Measurement Protocols

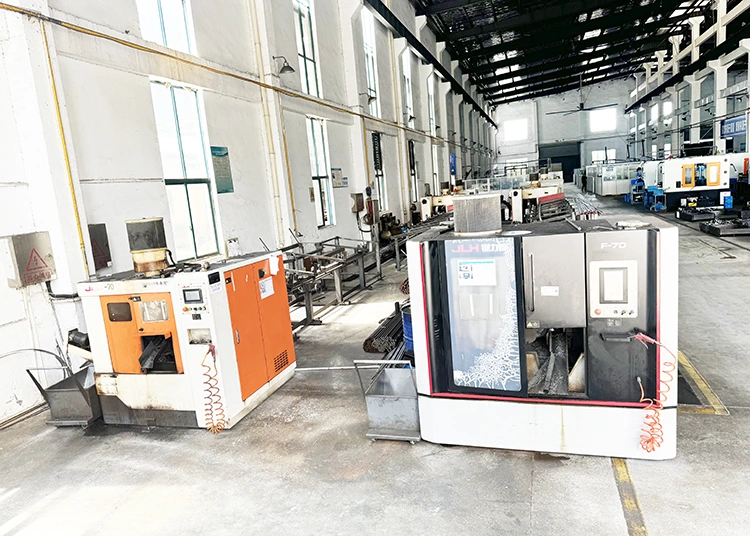

Maintaining a face perpendicularity of ≤0.01 mm requires highly stable fixtures and rigid CNC machine tools to eliminate vibration. If the perpendicularity shifts, the belt will track unevenly, leading to edge wear and premature belt failure. Production facilities utilize Coordinate Measuring Machines (CMM), roundness testers, and profile measuring instruments to run Statistical Process Control (SPC) and monitor critical dimensions in real time, achieving a consistent process yield rate of 99.995%.

Automated Electrophoresis and Coating Protection

Operating in exposed environments makes steel parts vulnerable to rust and chemical corrosion. To prevent surface degradation, an automated electrophoresis line applies a uniform protective coating. This touchless process eliminates human handling, reducing the risk of impact scratches and ensuring excellent rust resistance. For alternative requirements, other coatings—such as electroplating, zinc plating, nickel plating, and black oxide—are fully customizable based on technical requirements.

Integrated Technical Specifications

Why Choose Us

Partnering with an experienced precision manufacturer secures your supply chain and maintains the performance of your mechanical assemblies. Our production infrastructure is built to provide extensive engineering and logistics support:

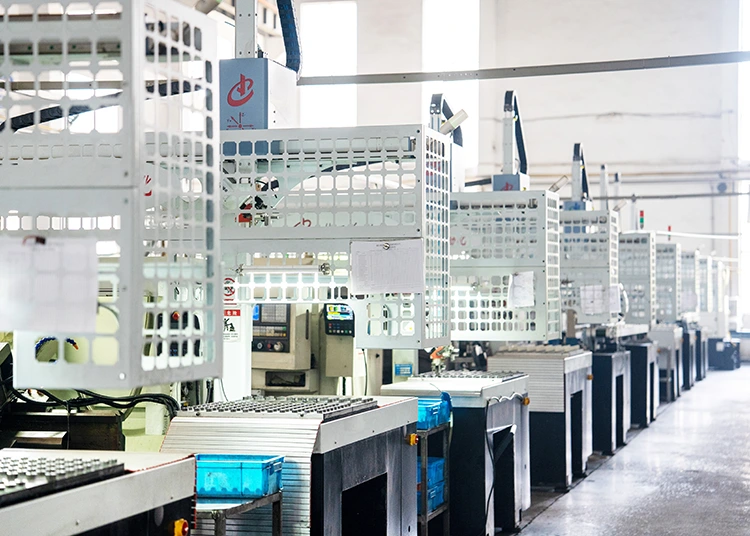

• High-Volume Automated Platform: The manufacturing facility runs 10 fully automated production lines, backed by automated cleaning and automated black oxide lines. All critical dimensions, including inner bore tolerance, are maintained at ≤0.005 mm to guarantee consistent performance across mass production runs.
• Ample Production Headroom: The manufacturing plant maintains a total monthly capacity of approximately 5 million units, with current monthly shipments running between 3 and 4 million units. This leaves a 40% to 60% capacity buffer to comfortably support rapid demand scaling and schedule changes.
• Global Automotive and Appliance Integration: With strategic cooperative relationships with leading motor manufacturers including Midea, Gree, LG, Nidec, Huilu, and Wolong, the production facility has demonstrated the capability to satisfy rigorous quality requirements.
• Zhejiang Manufacturing Hub Location: Situated in Zhejiang Province, our facility benefits from mature local supplier networks. This geographic placement ensures short material procurement lead times and allows rapid responses to engineering adjustments.
• Complete Regulatory Compliance: Raw materials and surface treatment processes conform to international environmental standards. All products are backed by official RoHS and REACH compliance reports, ensuring trouble-free global export.

Frequently Asked Questions

How does face perpendicularity affect Timing Pulley For Automotive Engine service life?

Face perpendicularity directly controls how straight the belt tracks. Our standard of ≤0.01 mm prevents the belt from sliding toward the pulley flanges, which reduces lateral friction, eliminates edge wear, and lowers acoustic output during high-speed rotation.

What are the benefits of electrophoresis over standard painting?

Electrophoresis applies a highly uniform, thin chemical layer over all complex geometries, including inner bores and tooth roots. It provides outstanding corrosion resistance—surviving a 72-hour neutral salt spray test—and maintains precise dimensions without adding thickness that could interfere with belt fitment.

Can the teeth profiles be customized to match non-standard belts?

Yes. The experienced engineering team can customize tooth shapes and overall pulley dimensions to match your proprietary systems. We process custom components based on provided engineering drawings and specified raw materials.

What quality testing is performed before the parts leave the facility?

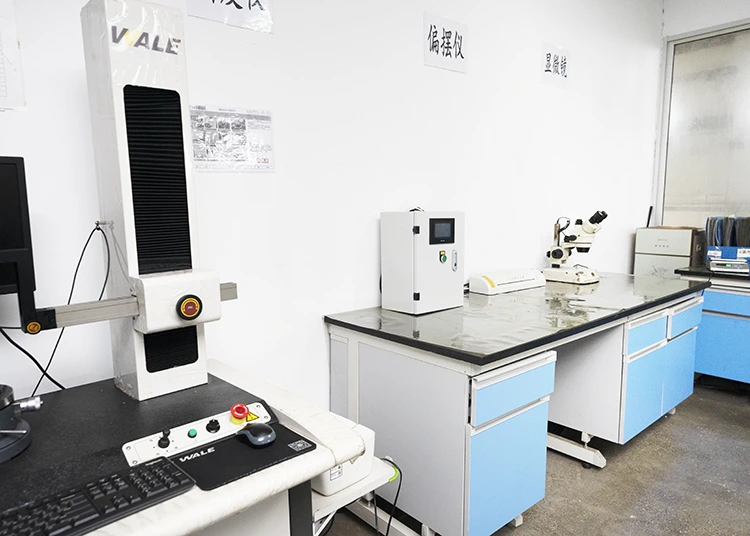

All parts undergo 100% outgoing quality inspection. We utilize advanced Coordinate Measuring Machines (CMM) and profile testing instruments to verify tooth angles within ±0.5° and check for concentricity before shipment.

Are these components compliant with European environmental regulations?

Yes. All raw materials, such as 45# carbon steel and 1215 low-carbon steel, are selected to meet international environmental regulations and are fully backed by RoHS and REACH certification reports.

Engineering Excellence and Operational Integrity

With more than twenty years of deep engagement in precision mechanical processing, the brand continues to drive efficiency and reliability across the automotive, automation, and home appliance sectors. By maintaining complete control over every stage of the process—from metallurgical inspection to automated CNC machining and touchless electrophoresis coating—the facility ensures that every drive component performs reliably under high physical and thermal stress. Partner with HAWEN to secure a certified Timing Pulley For Automotive Engine designed to maximize the performance and operational lifetime of your automotive motor systems.
