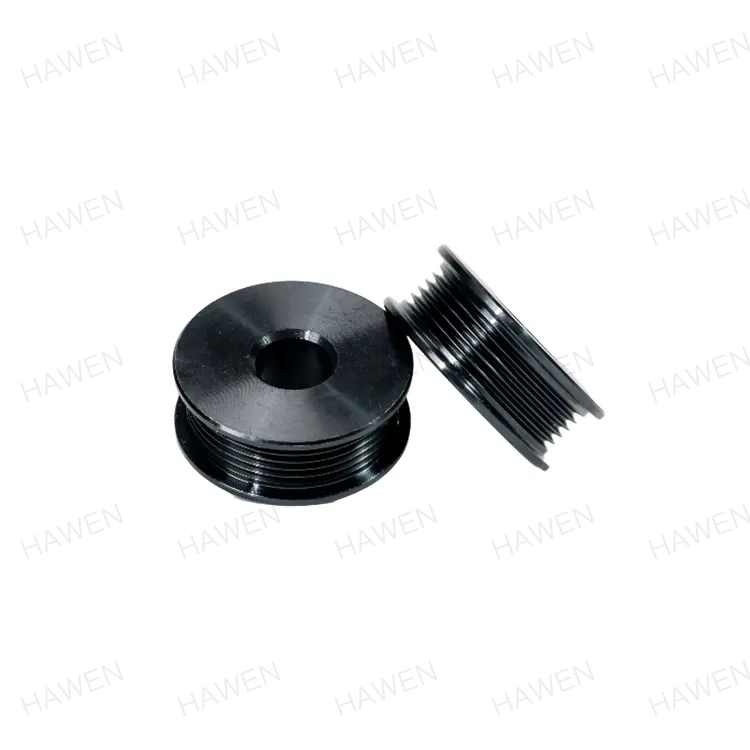

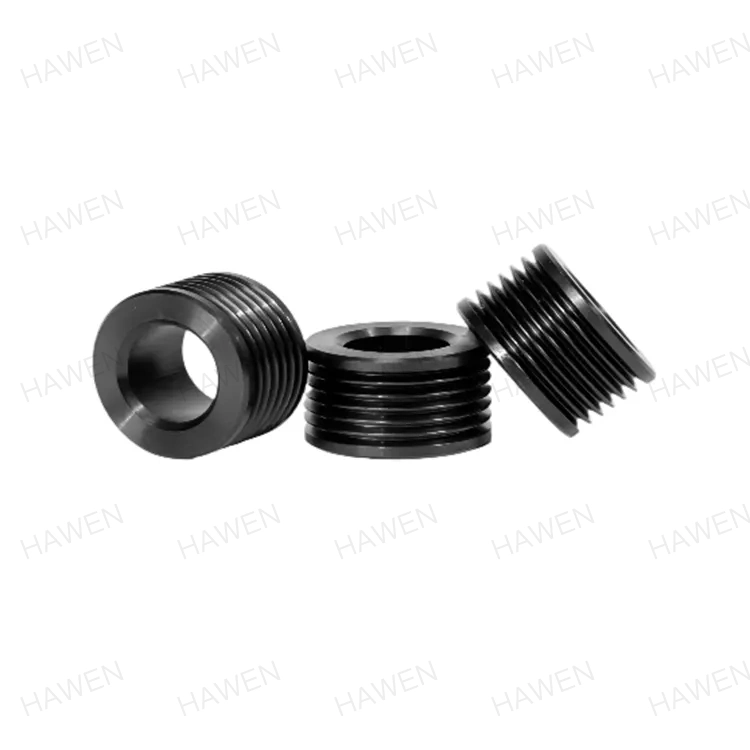

Narrow V Belt Drive Pulley

HAWEN Narrow V Belt Drive Pulley supplier specializes in precision-engineered belt transmission solutions for industrial equipment. Combining optimized structural design, material control, precision machining, and automated inspection, HAWEN focuses on improving transmission stability, reducing vibration, and supporting long-term equipment operation. The manufacturing process includes mechanical machining, surface protection, and strict quality verification to ensure reliable performance. Customized designs based on technical drawings and application requirements are available.

Reliable Transmission Solutions for Industrial Machinery

HAWEN Narrow V Belt Drive Pulley is designed for mechanical systems that require efficient power transmission, stable operation, and accurate component matching. As a key part of belt-driven equipment, the pulley transfers rotational force through friction between the belt and groove, helping machinery achieve smooth and reliable operation.

The product combines suitable material selection, precision machining, and controlled manufacturing processes to provide stable transmission performance. HAWEN focuses on developing mechanical components that meet industrial requirements for accuracy, durability, and consistent quality.

Efficient Power Transfer Design

V-belt transmission systems are widely used because of their simple structure, high adaptability, and convenient maintenance. The pulley design directly affects belt contact performance, transmission stability, and equipment operating efficiency.

• Optimized groove structure improves belt engagement.
• Accurate machining supports stable shaft connection.
• Balanced structure helps reduce vibration during operation.
• Suitable for continuous mechanical transmission applications.

Stable Performance Under Different Working Conditions

Industrial equipment often operates under different environments and load conditions. A reliable drive component needs good dimensional stability and resistance to operating stress.

• Consistent machining accuracy improves assembly reliability.
• Strong material adaptability supports long-term operation.
• Surface protection improves environmental resistance.
• Standardized production ensures batch consistency.

Material Selection and Mechanical Performance

Material quality is an important factor affecting machining accuracy, durability, and production stability. HAWEN uses 1215 free-cutting steel, which is suitable for precision mechanical component manufacturing due to its excellent machinability.

Advantages of 1215 Free-Cutting Steel

1215 steel is an environmentally friendly free-cutting steel with good cutting performance and stable physical properties. It is widely suitable for automated precision machining processes.

• Excellent machinability improves processing efficiency.
• Good chip-breaking performance supports stable machining.
• Suitable for continuous automated production.
• Provides reliable dimensional accuracy after processing.

The material does not contain hazardous substances such as lead and meets environmental requirements. Through suitable surface treatment methods, the component can achieve improved corrosion resistance for industrial environments.

Precision Manufacturing and Quality Control

Transmission components require strict dimensional control because even small variations can influence fitting accuracy, vibration performance, and service reliability. HAWEN applies precision machining and inspection processes to maintain stable manufacturing quality.

Accurate Inner Bore Processing

The inner bore is one of the most important precision areas because it determines the connection between the pulley and shaft. Accurate bore processing improves assembly performance and helps maintain stable transmission.

• Precision machining equipment for critical dimensions.
• Professional measuring instruments for verification.
• Stable processing environment for production consistency.
• Process monitoring to reduce manufacturing variation.

Groove Accuracy and Belt Matching

The groove profile affects the contact condition between the belt and pulley. Proper groove processing helps maintain smooth power transmission and reduces unnecessary energy loss caused by poor fitting.

• Controlled groove angle accuracy.
• Stable belt contact performance.
• Reduced vibration during operation.
• Improved transmission reliability.

Surface Protection for Extended Service Life

Metal transmission parts may experience corrosion when exposed to humidity or challenging operating environments. HAWEN uses zinc plating technology to create a protective surface layer and improve corrosion resistance.

Controlled Electroplating Process

• Provides surface protection against environmental corrosion.
• Improves product durability during operation.
• Maintains stable coating quality through automated processing.
• Reduces surface damage risks during manufacturing.

The surface treatment process is controlled to maintain consistent quality. Other treatment options, including blackening and nickel plating, can also be customized according to technical requirements.

Application Areas and Transmission Performance

HAWEN Narrow V Belt Drive Pulley is developed for industrial equipment requiring stable mechanical transmission, accurate power transfer, and dependable operation. The component is widely used in belt-driven systems where smooth rotation and long-term reliability are important.

Main Equipment Applications

• Air compressors.
• Fans and ventilation equipment.
• Water pump motors.
• Tumble dryers.
• General industrial machinery.

In these applications, V-belt transmission provides a practical solution for transferring mechanical power. The belt and pulley work together through friction, allowing equipment to maintain stable operation while supporting convenient maintenance.

Advantages in Mechanical Transmission Systems

• Reliable power transmission performance.
• Good adaptability to different operating conditions.
• Stable running with reduced vibration and impact.
• Simple structure for easier maintenance.

Through accurate machining and controlled manufacturing, HAWEN provides transmission components that support consistent equipment performance and efficient mechanical operation.

Engineering Capability and Customized Solutions

Different mechanical systems may require specific dimensions, groove structures, and surface protection solutions. HAWEN provides customized manufacturing services based on technical drawings and application requirements.

Flexible Product Development

• Customized dimensions according to drawings.
• Special structural design support.
• Different surface treatment solutions.
• Technical assistance during development stages.

The engineering team evaluates material characteristics, processing methods, and application conditions to develop practical solutions that balance performance, manufacturing efficiency, and reliability.

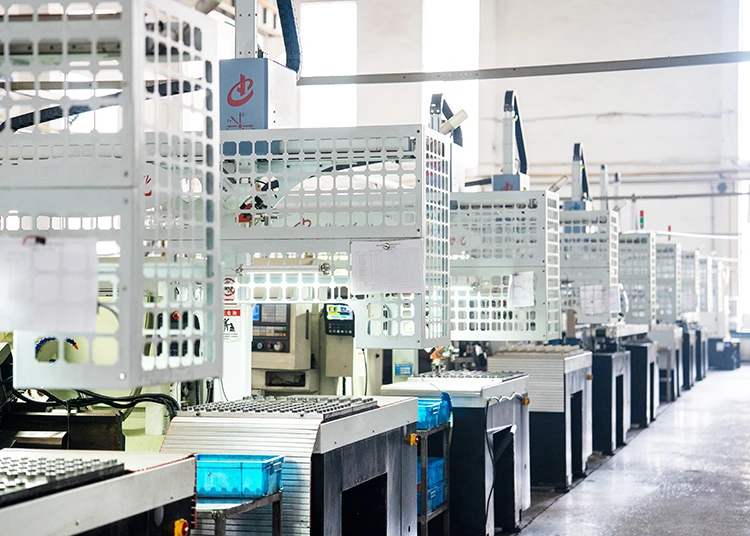

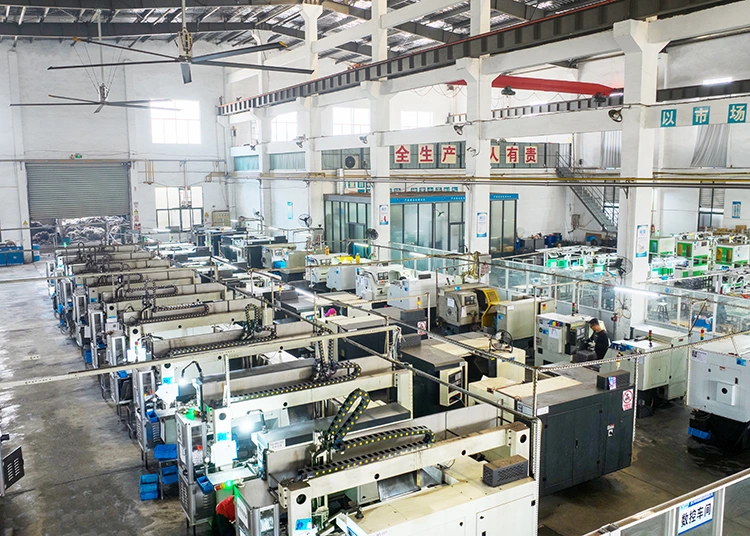

Precision Manufacturing Experience

HAWEN has accumulated extensive experience in precision mechanical processing. Continuous improvement in equipment, process control, and quality management enables stable production of mechanical transmission components.

• Professional understanding of machining requirements.
• Optimization of production processes.
• Improvement of manufacturing consistency.
• Support for customized industrial applications.

Production Management and Quality Assurance

Stable product quality depends on strict control throughout the entire manufacturing process. HAWEN manages every production stage from material inspection to finished component verification.

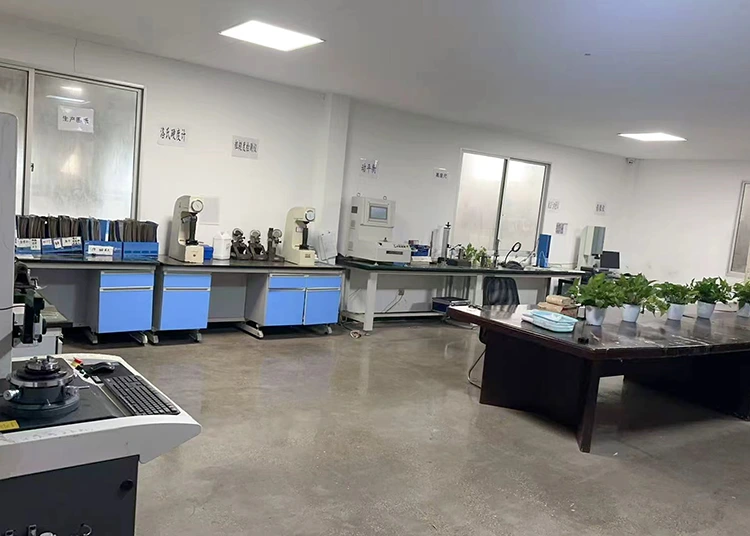

Complete Manufacturing Control

• Raw material inspection before processing.
• Precision machining control during production.
• Online monitoring of important process parameters.
• Final inspection before delivery.

Automated inspection systems help reduce manual errors and improve batch consistency. Every Narrow V Belt Drive Pulley production process is managed according to clear quality standards to ensure reliable performance.

Environmental Manufacturing Standards

HAWEN focuses on environmentally responsible production from material selection to processing methods. The product complies with international environmental requirements including ROHS and REACH standards.

• Environmentally compliant raw materials.
• Controlled electroplating procedures.
• Reduced production waste through automation.
• Continuous improvement of manufacturing efficiency.

Why Choose Us

Selecting a precision mechanical component manufacturer requires strong technical experience, reliable production capability, and effective quality management. HAWEN combines engineering expertise and manufacturing resources to provide stable industrial solutions.

Professional Manufacturing Experience

• Deep experience in precision mechanical component production.
• Strong knowledge of material selection and machining processes.
• Focus on practical and reliable manufacturing solutions.

Advanced Process Control

• Strict control from raw materials to finished products.
• Precision measurement for critical dimensions.
• Continuous monitoring during production.
• Stable quality through standardized processes.

Reliable Custom Development

HAWEN supports customized transmission component development according to different equipment requirements. From structural evaluation to production optimization, the company focuses on delivering efficient and reliable solutions.

Frequently Asked Questions

What material is used for this pulley?

The Narrow V Belt Drive Pulley is manufactured from 1215 free-cutting steel, which provides excellent machinability and stable performance for precision mechanical processing.

Where is this pulley commonly used?

The component is mainly applied in air compressors, fans, water pump motors, tumble dryers, and other belt-driven mechanical equipment.

Can the design be customized?

Yes. HAWEN provides customized solutions according to technical drawings, including dimensions, structural requirements, and surface treatment options.

Why is machining accuracy important?

Machining accuracy affects shaft fitting, belt alignment, vibration control, and transmission stability. Precise processing helps improve overall equipment reliability.

What surface treatment options are available?

The standard treatment is zinc plating. Additional options such as blackening and nickel plating are available according to technical requirements.

How does HAWEN ensure consistent quality?

HAWEN uses material control, precision machining, process monitoring, and final inspection procedures to maintain stable product quality.

Trusted Brand for Industrial Transmission Components

HAWEN focuses on precision mechanical manufacturing with continuous improvement in engineering capability, production technology, and quality systems. The company provides reliable transmission solutions based on professional experience and strict manufacturing standards.

With strong capabilities in material application, precision machining, surface treatment, and customized development, HAWEN supports industrial equipment with components designed for accuracy, stability, and long service life.

As a trusted manufacturer of Narrow V Belt Drive Pulley, HAWEN represents professional manufacturing, reliable quality, and technical innovation. Choosing HAWEN means choosing a brand committed to precision, efficiency, and long-term value in industrial transmission solutions.
