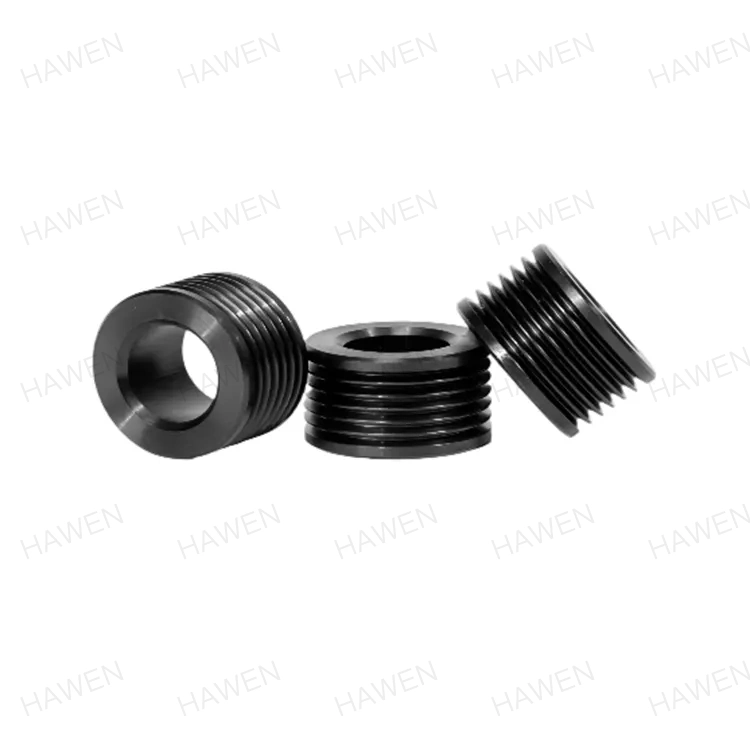

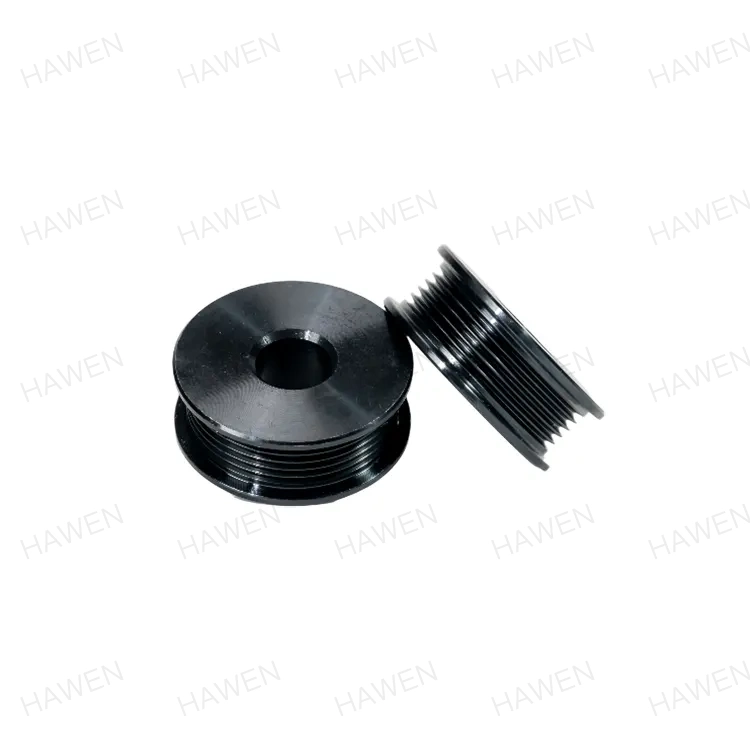

Narrow V Belt Grooved Pulley

HAWEN Narrow V Belt Grooved Pulley supplier specializes in high-precision belt transmission components designed for air compressors, fans, pumps, and industrial machinery. Combining material advantages, precision machining processes, and automated inspection systems, HAWEN focuses on improving transmission efficiency, reducing vibration, and extending service reliability. The manufacturing process covers material control, mechanical processing, surface treatment, and final inspection to ensure consistent product performance. Customized designs based on technical drawings are available.

Precision Transmission Components for Industrial Equipment

HAWEN Narrow V Belt Grooved Pulley is designed for mechanical transmission systems that require stable power transfer, accurate fitting, and reliable operation. As an important transmission component, the pulley works together with V-belts to transfer rotational force efficiently while maintaining smooth equipment operation.

The product adopts precision machining technology and controlled manufacturing processes to achieve accurate dimensions, stable groove geometry, and dependable assembly performance. HAWEN focuses on providing transmission solutions that balance efficiency, durability, and manufacturing consistency.

Stable Power Transmission Design

V-belt transmission is widely used in industrial equipment because of its practical structure, easy maintenance, and adaptability to different working conditions. The pulley groove design directly influences belt fitting accuracy and transmission stability.

• Accurate groove processing improves belt engagement.
• Stable rotation reduces unnecessary vibration during operation.
• Reliable mechanical structure supports continuous working conditions.
• Suitable for medium-power transmission applications.

Optimized Structure for Industrial Applications

The design of the pulley focuses on dimensional accuracy, structural consistency, and long-term operating reliability. Proper groove geometry and precise inner bore processing help improve the connection between the pulley and shaft.

• Precise inner bore improves installation accuracy.
• Controlled groove angle supports stable belt movement.
• Balanced structure helps reduce operational impact.
• Suitable for various mechanical transmission systems.

Material Advantages and Processing Performance

Material selection directly affects machining efficiency, component durability, and production consistency. HAWEN uses 1215 free-cutting steel, an environmentally friendly material widely used for precision mechanical parts.

1215 Free-Cutting Steel Characteristics

1215 steel provides excellent machinability and stable physical properties, making it suitable for automated precision processing. The material allows efficient cutting performance while maintaining dimensional accuracy during mass production.

• Excellent machinability reduces processing difficulty.
• Good chip-breaking performance improves machining efficiency.
• Stable material properties support consistent production quality.
• Suitable for precision mechanical components.

The material contains no hazardous substances such as lead and meets environmental requirements. Through proper surface treatment, the component can achieve improved corrosion resistance for different operating environments.

High-Precision Manufacturing Process

Narrow V Belt Grooved Pulley Precision transmission components require strict control of machining accuracy and production stability. HAWEN applies advanced manufacturing methods and inspection systems to maintain reliable quality throughout production.

Inner Bore Accuracy Control

The inner bore is a critical area affecting shaft fitting accuracy and transmission performance. HAWEN uses precision machining equipment and measurement methods to ensure dimensional stability.

• Precision CNC machining for critical dimensions.
• Professional measuring equipment for verification.
• Stable processing conditions to reduce deviation.
• Process monitoring for consistent production results.

Groove Processing and Transmission Reliability

The groove profile directly influences the contact condition between the belt and pulley. Accurate groove processing helps maintain proper belt engagement, reduce energy loss, and support stable mechanical transmission.

• Controlled groove angle accuracy.
• Consistent machining quality between batches.
• Improved belt matching performance.
• Reduced vibration during operation.

Surface Protection and Durability Improvement

Metal transmission components may face corrosion risks during long-term operation. HAWEN applies zinc plating technology to improve surface protection and enhance resistance against environmental influence.

Electroplating Process Control

• Provides protective zinc coating on metal surfaces.
• Improves corrosion resistance during operation.
• Uses automated processing equipment for stable quality.
• Reduces product damage risks caused by manual handling.

The electroplating process is controlled to ensure coating consistency and surface quality. Additional surface treatments, including blackening and nickel plating, can also be customized according to technical requirements.

Application Areas and Equipment Compatibility

HAWEN Narrow V Belt Grooved Pulley is widely applied in mechanical transmission systems where stable power transfer, compact structure, and reliable operation are required. The product is suitable for equipment that uses belt-driven power transmission and requires consistent performance during continuous operation.

Main Application Equipment

• Air compressors.
• Fans and ventilation equipment.
• Water pump motors.
• Tumble dryers.
• General industrial machinery.

In these applications, V-belt transmission provides practical advantages including high efficiency, easy maintenance, and strong adaptability. The pulley transfers power through friction between the belt and groove, helping equipment achieve smooth operation under different working conditions.

Performance Advantages in Transmission Systems

• High transmission efficiency for general industrial applications.
• Stable operation with reduced vibration and impact.
• Flexible application under different working environments.
• Easy maintenance compared with more complex transmission structures.

The combination of accurate machining and suitable material selection allows the component to maintain stable performance throughout its service period.

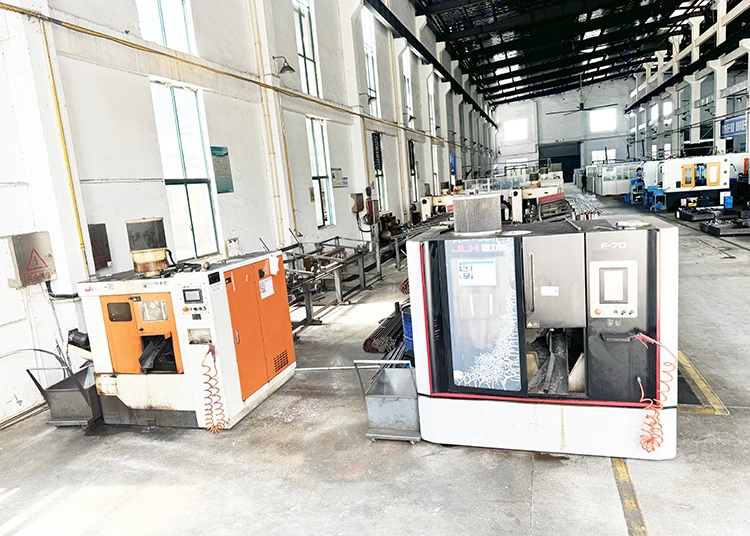

Advanced Manufacturing Capability and Process Management

Reliable transmission components require not only accurate machining but also stable production management. HAWEN integrates engineering experience, automated equipment, and inspection systems to maintain consistent manufacturing quality.

Precision Production System

• High-precision CNC machining equipment.
• Automated surface treatment processes.
• Professional inspection equipment for quality verification.
• Standardized production procedures.

The manufacturing process is optimized from raw material selection to final inspection. Each Narrow V Belt Grooved Pulley production stage is controlled to reduce variation and improve product consistency.

Engineering and Customization Support

Different mechanical systems may require different dimensions, structures, and surface treatment solutions. HAWEN provides customized manufacturing according to technical drawings and application requirements.

• Customized pulley dimensions.
• Special structural requirements.
• Different surface treatment options.
• Technical support during product development.

The engineering team evaluates machining feasibility, material performance, and application conditions to provide practical solutions suitable for industrial use.

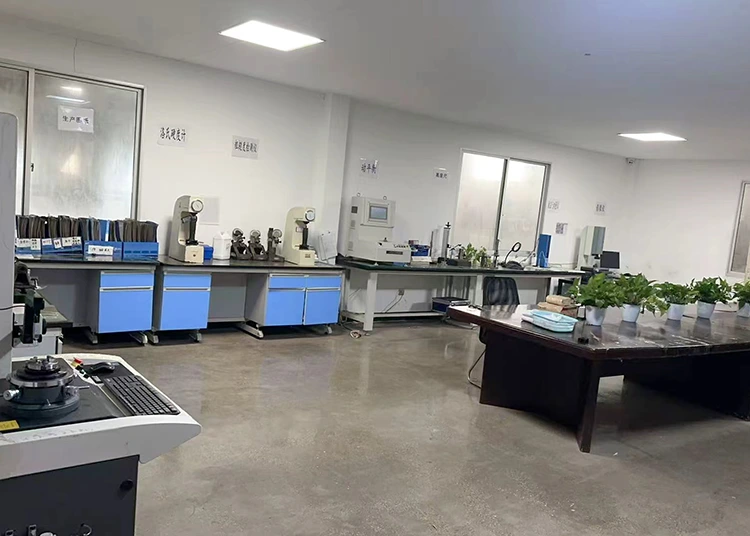

Quality Control from Material to Finished Product

HAWEN applies a complete quality management system throughout the production process. Quality control begins with raw material inspection and continues through machining, surface treatment, and final verification.

Full Process Quality Management

• Raw material consistency control before production.
• Real-time monitoring during machining processes.
• Dimensional inspection of key technical areas.
• Surface quality inspection before shipment.

Automated inspection methods help reduce human operation errors and maintain stable quality between production batches. The goal is to provide components with reliable performance and consistent manufacturing standards.

Environmental Manufacturing Requirements

HAWEN considers environmental requirements throughout material selection and processing. The products comply with international environmental standards such as ROHS and REACH.

• Use of environmentally compliant materials.
• Controlled electroplating process.
• Reduced waste through automated manufacturing.
• Responsible production management.

Frequently Asked Questions

What material is used for the pulley?

The Narrow V Belt Grooved Pulley is manufactured from 1215 free-cutting steel, which provides excellent machinability, stable material performance, and suitability for precision mechanical processing.

What equipment can use this pulley?

The component is mainly used in equipment such as air compressors, fans, water pump motors, tumble dryers, and other industrial transmission systems.

Can the pulley be customized?

Yes. HAWEN provides customized manufacturing according to drawings, including dimensions, structural design, and surface treatment requirements.

Why is inner bore accuracy important?

Inner bore accuracy directly affects the fitting relationship between the pulley and shaft. Proper accuracy helps improve transmission efficiency, reduce vibration, and support stable equipment operation.

What surface treatments are available?

The standard surface treatment is zinc plating. Other options such as blackening and nickel plating can also be provided according to technical requirements.

How does HAWEN ensure quality consistency?

HAWEN applies material inspection, machining control, online monitoring, and final inspection procedures to maintain stable production quality.
