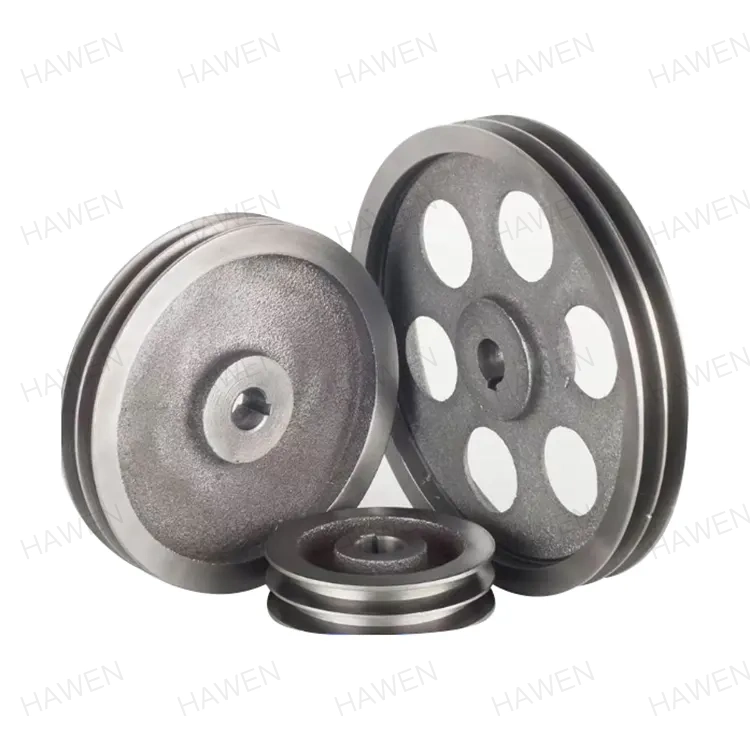

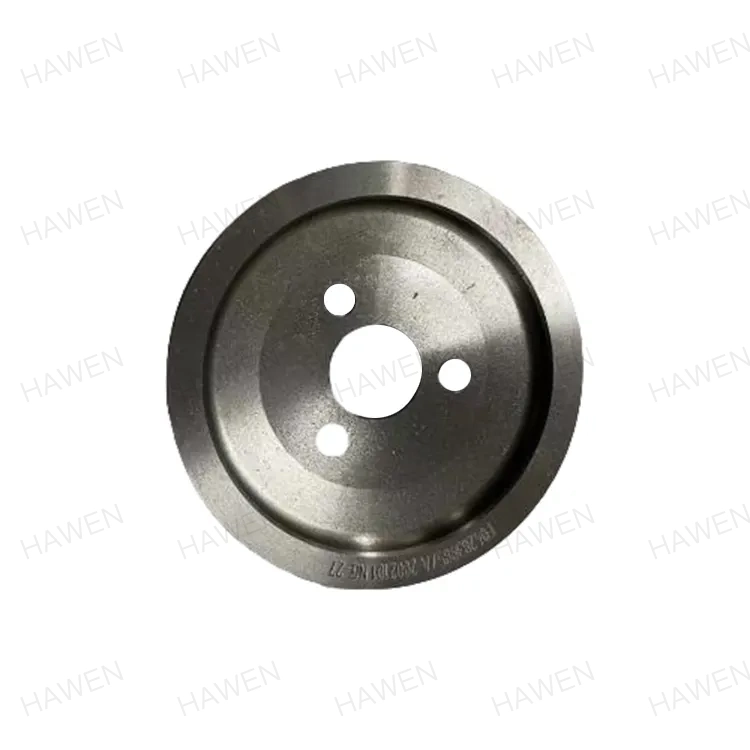

Water Pump Pulley For Cooling System

As an industry-leading manufacturer, HAWEN specializes in the fabrication of the Water Pump Pulley For Cooling System, designed to connect engine crankshafts and pump shafts via drive belts with high efficiency. Operating ten fully automated production lines, this manufacturing facility achieves exceptional dimensional stability for heavy-duty cooling architectures.

Dynamic Power Transmission in Industrial Systems

Mechanical assemblies rely on continuous, synchronized rotational motion to maintain temperature control and prevent thermal degradation. In liquid-cooled machinery, the implementation of a high-quality Water Pump Pulley For Cooling System facilitates the direct transfer of energy from the primary engine crankshaft to the impeller shaft. This link dictates the volume and velocity of coolant flowing through the thermal pathways, maintaining equilibrium during peak operations.

• Crankshaft Synchronization: Power is drawn from the rotating crankshaft using highly efficient drive belts. Standard setups utilize specific configurations to achieve a highly balanced transmission ratio that typically ranges from 2:1 to 4:1.
• Rotational Regulation: The rotational velocity is dynamically governed by the relative outer diameter of the drive wheel. By adjusting these dimensions, the system matches different speed variables of the prime mover.
• Operational Equilibrium: Consistent, non-slip belt engagement prevents temperature spikes within the system, ensuring that heat-absorbing liquid circulates steadily back to the heat exchange assembly.

Technical Dimensional Parameters

Achieving stable mechanical drive connections requires matching exact structural specifications. Below are the verified metrics for single-groove and multi-groove configurations:

System Applications and Environmental Integration

The utility of a Water Pump Pulley For Cooling System spans multiple sectors where fluid regulation is paramount. These components are deployed across diverse operating environments with varying speed, torque, and environmental exposure levels.

Automotive Fluid Circuits

In combustion engine cooling setups, the component links directly to the engine crankshaft. During high-velocity operations, rotational speeds can scale up to 3000 rpm, demanding excellent balance and structural fatigue resistance to sustain coolant circulation.

Industrial Fluid Processing

Centrifugal pump systems rely on flexible drive layouts for sewage and chemical processing. Varying the diameter of the fitted component enables direct control over system lift and fluid velocity without altering primary motor parameters.

Agricultural Irrigation Drives

Submersible pumps operate under challenging physical conditions. Using an extended wheelbase layout allows the mechanical drive to sit safely away from damp well shafts, protecting electrical equipment from moisture damage.

Climate Regulation Systems

Multi-ribbed belts connect the compressor assembly directly to the engine drive shaft. Under idle conditions, the integration of automatic tensioners ensures the system retains a stable torque reserve to meet climate regulation parameters.

Corrosive Marine Environments

Propulsion and auxiliary marine engines are exposed to salt-spray environments. To prevent rapid oxidation and rust, components fabricated from stainless steel are utilized to maintain uninterrupted cooling cycles.

Electric Powertrain Assemblies

Modern electric vehicles utilize brush-free direct-drive designs. These configurations rely on variable speed adjustments to achieve precise, stepless temperature management across battery packs and power electronics.

Material Characteristics and Metallurgy

The operational lifespan of heavy-duty drive components is determined by physical composition. Standard formulations utilize iron-carbon-silicon alloys (carbon range of 2.1% to 4%), focusing on optimized matrix structures and graphite shapes to manage high frictional stress.

• Gray Cast Iron (HT250): This alloy exhibits a tensile strength of 250 MPa and a hardness range of 180 to 250 HBW. It is highly valued for its excellent fluid flow during casting, minimal shrinkage (0.5% to 1%), and high vibration-damping capacity, though it retains moderate brittleness.
• Ductile Iron (QT500-7): Spheroidized via magnesium treatment, the graphite nodes within the matrix are rounded. This modification increases the tensile strength to 500 MPa and delivers a 7% elongation capacity, drastically reducing fatigue risk under sudden shock loads.
• High-Silicon Cast Iron: Formulated with a 14% to 18% silicon content, this specialized variant offers critical defense against aggressive chemical environments and strong acid exposures.

Precision Fabrication and Quality Verification

To eliminate mechanical imbalance and belt slip, tight dimensional limits are maintained during fabrication. Precision machining steps verify that crucial interfaces, such as the internal shaft bore, align with exact geometric requirements.

Automated Production Controls

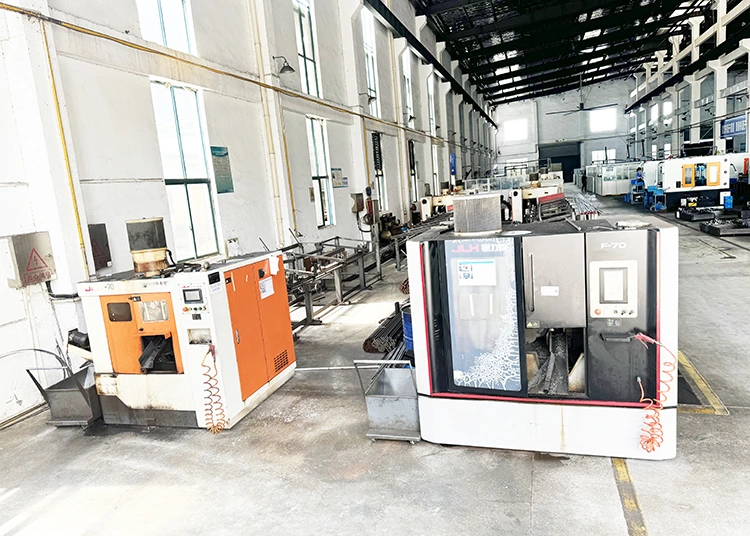

Ten automated lines handle key operations from base preparation through machining. Computer Numerical Control (CNC) equipment, specialized tooling, and rigid positioning fixtures are utilized to maintain inner bore tolerances at ≤0.005 mm, preventing rotational eccentricity.

Metrology and Testing Protocols

A suite of high-precision instruments verifies dimensional consistency across production runs. Statistical Process Control (SPC) protocols monitor parameters in real time to sustain a 99.995% pass rate. Metrology equipment includes:

• Coordinate Measuring Machines (CMM) for multi-axis geometric tracking
• High-accuracy roundness testers to monitor bore concentricity
• Profile measuring instruments for groove geometry verification

Surface Treatments and Environmental Standards

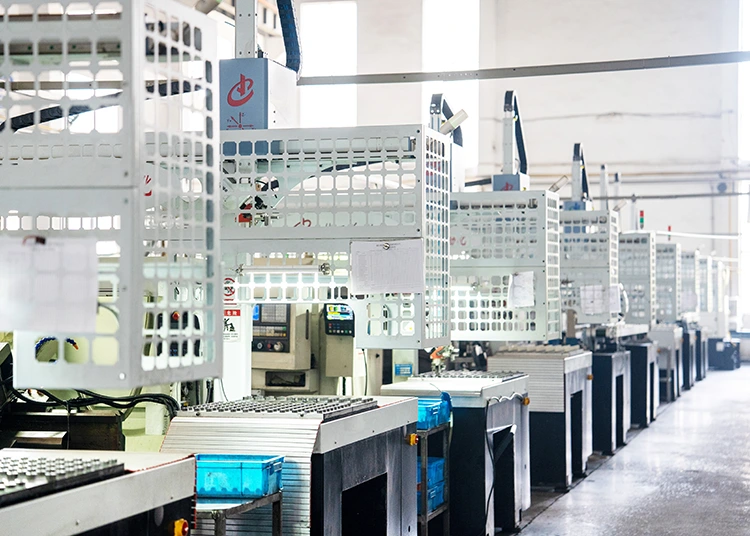

Metal surfaces are prone to corrosion under high humidity or chemical exposure. To address this, automated, touchless electrophoresis equipment coats the product uniformly, eliminating human-contact defects. Alternative plating options, including zinc plating and nickel plating, are available for specialized needs. Raw materials, such as 1215 low-carbon free-cutting steel, are selected to meet environmental demands, and all products carry official RoHS and REACH compliance reports.

Why Choose Us

Procurement operations require an experienced partner capable of combining manufacturing scale with rigorous quality verification. The production facility offers distinct advantages for global supply pipelines:

• Proven Domestic Integration: The facility maintains a commanding 65%-75% market share for washing machine motor pulleys, alongside a stable 50% domestic market share for timing pulleys, demonstrating deep industry trust.
• Substantial Scaling Capacity: Monthly production limits reach 5 million units, with current shipping volumes averaging 3 to 4 million units. This provides a 40% to 60% buffer capacity to easily accommodate scaling demands.
• Verified Operational History: Over twenty years of technical development and deep cooperative ties with major brands, such as Asco, Midea, Gree, LG, Nidec, Huilu, and Wolong, establish a strong track record of engineering reliability.
• Geographic Hub Advantages: Located in Lishui, Zhejiang Province, the facility operates within a primary industrial manufacturing zone, allowing short supply lead times and rapid adaptation to engineering updates.

Frequently Asked Questions

What are the typical transmission ratios supported by these components?

Standard units generally facilitate ratios from 2:1 to 4:1. These dimensions can be custom-tailored to suit specific output speeds and motor parameters based on provided technical specifications.

How does the factory prevent rust on cast iron products?

An automated electrophoresis line, combined with an integrated drying system, seals the metal surfaces. Because the process is hands-free, it avoids surface contamination and minor physical impacts that occur with manual handling.

Which testing steps are used to check bore accuracy?

Quality checks combine inline monitoring systems and final metrology tests. Finished products are checked using Coordinate Measuring Machines (CMM) and roundness testers to confirm the inner bore matches the ≤0.005 mm tolerance limit.

Are custom alloy compositions supported?

Yes. The engineering team reviews supplied technical drawings to configure the appropriate metallurgy—whether Gray Cast Iron (HT250), Ductile Iron (QT500-7), stainless steel, or high-silicon alternatives—to match the application environment.

Advanced Industrial Solutions

For more than two decades, the manufacturing facility has advanced power transmission technology through intensive development, strict process control, and high-precision automation. By managing every stage from alloy selection to automated electrophoresis, the brand ensures that each Water Pump Pulley For Cooling System operates with optimal efficiency and durability in heavy-duty setups worldwide. Partner with HAWEN to secure reliable, long-term transmission performance for your industrial fluid equipment.
