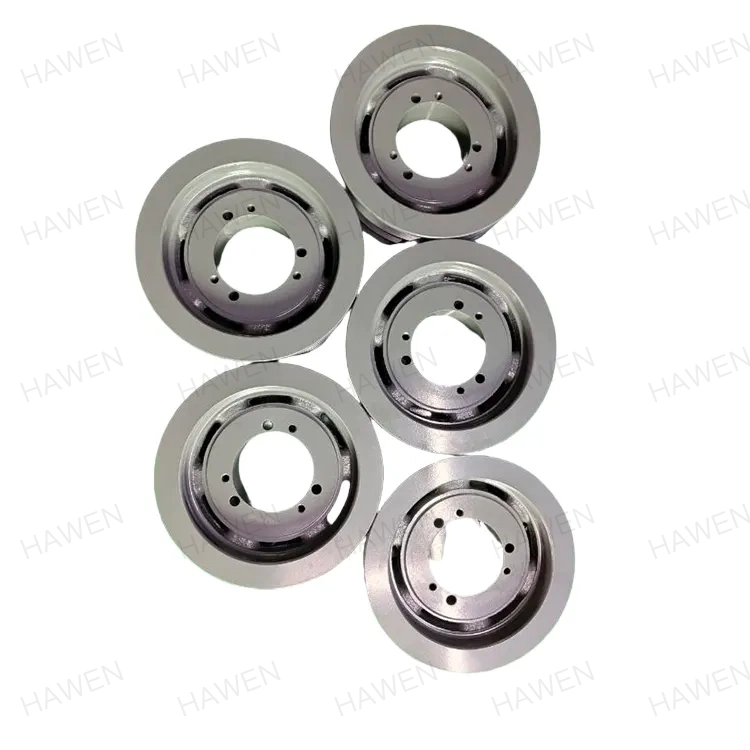

Flat Belt Flanged Pulley

HAWEN is a premier China-based manufacturer and supplier offering custom Flat Belt Flanged Pulley components built for stable, high-speed drive systems. Precision-machined from cast iron, carbon steel, and aluminum alloy, each unit combines robust structural integrity with effective axial belt restraint. Featuring versatile keyway and taper lock bushing mounting options, our production lines supply reliable components engineered to withstand high shock loads and lower operational noise in pumps, fans, compressors, and conveyance systems worldwide.

Flanged Structure for Stable Belt Tracking

In high-speed power transmission systems, maintaining strict axial positioning is critical to prevent system wear and unexpected mechanical downtime. A Flat Belt Flanged Pulley incorporates extended flanges on the outer rim face, providing physical restraint that prevents drive belts from walking or slipping off during rotation.

This integrated structural restraint ensures consistent axial placement across rotating assemblies, eliminating tracking errors caused by minor shaft misalignments or sudden acceleration cycles.

Axial Guidance Advantages

• Positive Belt Restraint: Side flanges maintain precise belt positioning along the rim face during high-speed movement.
• Reduced Friction Wear: Keeps belt movement centered, minimizing edge wear on drive belts and protecting connected equipment bearings.
• System Alignment Retention: Tolerates minor variations in shaft parallelism and center distances without compromising operational stability.

Smooth Power Transmission with Flat Belt Design

Combining precise rim geometries with flat drive belt contact surfaces allows mechanical assemblies to balance efficient power delivery with shock absorption. The flat profile distributes frictional contact evenly, supporting high energy transfer rates across light-to-medium drive setups.

The structural rigidity provided by the flanged rim enhances the meshing interface between the belt and pulley face, delivering reliable power output across variable rotation speeds.

Drive Efficiency Characteristics

• Efficient Energy Transfer: Uniform rim surface contact optimizes friction for smooth power delivery.
• Shock Load Absorption: Natural belt flexibility cushions instantaneous torque spikes, shielding mechanical components from excessive stress.
• Adaptable Machine Layouts: Operates reliably across flexible center distances and diverse motor configurations.

Reliable Performance Under Continuous Operation

Continuous industrial operation requires mechanical drive components that maintain structural integrity under persistent rotational stress. Machined from high-strength cast iron or steel, these solid rim structures resist dynamic deformation under shock loads.

The addition of side flanges increases overall torsional rigidity, allowing the unit to maintain precise running truth over extended operational lifetimes.

Operational Durability Features

• Deformation Resistance: Heavy-duty material construction prevents rim warping during high torque peaks.
• Overload Safety Clearance: Belt transmission provides controlled slip under severe jams, preventing motor shaft damage.
• Modular Serviceability: Straightforward design allows quick visual checks and fast assembly/disassembly to minimize downtime.

Noise Reduction and Vibration Control Benefits

System vibration and running noise are often indicators of axial movement or poor dynamic balance in mechanical drives. Integrating a Flat Belt Flanged Pulley into power output assemblies helps absorb minor mechanical chatter and stabilizes rotational movement.

The balanced rim profile and secure belt tracking reduce high-frequency mechanical vibration, contributing to quieter working environments in automated processing plants.

Vibration Mitigation Factors

• Torsional Rigidity: Stiff rim construction dampens system harmonics and reduces running chatter.
• Balanced Rotational Motion: Precision concentricity prevents shaft wobble at elevated operating speeds.
• Quiet Engagement Surface: Smooth belt-to-rim interaction lowers decibel levels across continuously operating drive lines.

Precision Manufacturing and Surface Quality

Delivering high-performance power transmission components relies on accurate machining tolerances and protective surface finishing. Every Flat Belt Flanged Pulley undergoes accurate CNC turning to achieve precise concentricity between the central hub and outer rim faces.

Post-machining surface treatments enhance environmental resistance, protecting the component against surface oxidation, dust accumulation, and ambient humidity.

Manufacturing Protocols

• Precision CNC Machining: Guarantees tight bore, keyway, and rim tolerances for exact mounting fitment.
• Surface Coating Options: Offers blackening, anti-rust painting, or electroplating to resist harsh factory conditions.
• Quality Testing Standards: Every batch undergoes dimensional checks and surface passivity evaluation before dispatch.

Applications in Industrial Drive Systems

Engineered for high stability and smooth power distribution, these components excel across a wide range of industrial equipment lines operating in clean, dusty, or humid environments.

• Industrial Fans & Pumps: Drives high-speed liquid pumps and ventilation systems requiring low operational noise.
• Packaging & Conveyor Systems: Powers automated packaging machinery and sorting conveyors with smooth torque transfer.
• Compressors & Reducers: Serves as a durable drive component in industrial compressors and speed reduction units.
• General Mechanical Equipment: Ideal for light-to-medium power output setups requiring reliable vibration damping.

Technical Specifications

Detailed design specifications and parameter configurations for standard drive series are summarized in the technical table below:

Customization Capability

Flexible production lines support complete component customization tailored to OEM engineering drawings and specific shaft mounting requirements. Specialized hub dimensions, custom keyway tolerances, and specific flange positions can be configured to match existing machinery setups.

High-volume manufacturing capacity ensures rapid turnaround for custom orders, supplying precision drive parts that match exact equipment specifications.

Custom Engineering Capabilities

• Bore & Hub Profiling: Machined with precision keyways or taper lock interfaces for seamless shaft attachment.
• Flange Restraint Customization: Single or double flange layouts designed for specialized axial load requirements.
• Material Adaptation: Selection of cast iron, carbon steel, or aluminum alloy depending on system weight and torque targets.

Strategic Supply Network & Global OEM Partners

As a leading precision mechanical component manufacturer, HAWEN serves as an essential supply chain partner for prominent global motor manufacturers and appliance brands. Our precision pulleys and machining components are integrated into high-performance drive units worldwide, reflecting strict adherence to international quality and tolerance standards.

Through consistent batch consistency, precise dynamic balancing, and stable supply capabilities, we maintain long-term production alliances with industry leaders in motor manufacturing, home appliance production, and heavy industrial automation.

Industry-Recognized Supply Credentials

• Global Appliance Leaders: Long-term component supply for multinational brands such as LG, Whirlpool, Midea, Galanz, and Askoll.
• Precision Motor Manufacturers: Technical collaboration and volume delivery for specialized motor OEMs including Nidec, Broad-Ocean, Wolong, and SECOP.
• High-Volume Integration: Supporting specialized drive equipment with daily manufacturing output exceeding 150,000 precision units.

Why Choose Us

Partnering with HAWEN provides direct access to dedicated precision manufacturing capabilities backed by extensive industry expertise, high daily output, and verified supply chain stability.

• National High-Tech Enterprise Strength: Backed by an established R&D center with an annual output value exceeding 100 million yuan.
• Massive Production Capacity: Facilities support a daily production capacity of up to 150,000 motor pulleys to meet global demand.
• Domestic Market Leadership: Holds an extensive domestic market share of 65%-75% in specialized motor drive components.
• Trusted OEM Partner: Established long-term strategic supply relationships with industry leaders including Midea, Gree, LG, Nidec, Huilu, and Wolong.
• Global Supply Network: Active international trade footprint delivering high-precision components across Europe, the Americas, the Middle East, and Asia.

FAQ

Q1: What structural problem does a flanged rim solve in flat belt drive systems?

The flange structure provides physical side barriers that prevent flat belts from walking off the rim face during shaft misalignment or rapid speed shifts.

Q2: Which materials are typically used to manufacture a Flat Belt Flanged Pulley?

Units are manufactured using cast iron for high vibration damping, carbon steel for heavy torque loads, or aluminum alloy for lightweight applications.

Q3: What mounting options are available for shaft installation?

Components can be supplied with precision keyways for direct mounting or taper lock bushing interfaces for quick field installation and removal.

Q4: How does the flat belt design help protect mechanical equipment?

Under sudden jam conditions or severe overload spikes, the drive belt can slip safely against the rim face, absorbing shock and protecting motor components from severe damage.

Q5: What surface treatment is best suited for humid or clean working environments?

Electroplating or specialized anti-rust paint coatings provide superior corrosion resistance, ensuring long service life in moist or high-cleanliness facilities.
