Flanged Timing Belt Pulley

HAWEN is a premier China-based manufacturer and supplier specializing in custom Flanged Timing Belt Pulley solutions for high-efficiency mechanical drives. Machined from high-grade cast iron, steel, and aluminum alloy, each unit combines precision tooth profiling with robust side flanges to eliminate axial belt walk. Featuring flexible mounting interfaces—including standard keyways and taper lock bushings—our production capabilities support smooth torque transfer, reduced bearing wear, and reliable service life across fans, pumps, compressors, and automated equipment lines worldwide.

Flanged Design for Stable Belt Positioning

Modern power transmission systems operating under continuous duty cycles demand strict axial restraint to prevent drive belts from walking off the rim face. A Flanged Timing Belt Pulley integrates a single or double side-flange structure on the outer rim, providing positive lateral guidance during rotational torque transfer.

This structural restraint eliminates axial displacement during rapid acceleration, direction changes, or high-speed operation, maintaining exact alignment across connected drive shafts.

Structural Stability Benefits

• Precise Axial Restraint: Prevents lateral belt walk, ensuring steady alignment under continuous operation.
• Vibration Reduction: High torsional rigidity lowers operational noise and dampens mechanical system vibration.
• Bearing & Belt Protection: Stable tracking reduces uneven edge friction, extending the service life of both belts and shaft bearings.

Advantages in Precision Synchronous Transmission

Integrating a Flanged Timing Belt Pulley into synchronous drive assemblies enhances meshing efficiency between the teeth and drive belts, supporting stable velocity ratios without mechanical slippage. The rigid rim geometry guarantees consistent friction and tooth engagement under varying mechanical loads.

This positive engagement profile helps power transmission lines operate at peak efficiency while offering natural shock absorption against unexpected torque surges.

Key Transmission Features

• Efficient Power Output: Rigid structural integrity ensures consistent tooth-to-groove contact for smooth energy transfer.
• Load Shock Absorption: Elastomeric belt engagement cushions instantaneous shock loads, protecting sensitive motor shafts.
• Overload Safety Slip: Provides natural slip tolerance during severe system jams to prevent catastrophic motor failure.

Improved Alignment for High-Speed Operation

High-speed rotating equipment demands forgiving installation characteristics to accommodate minor tolerances in center distance or shaft parallelism. The flanged rim design tolerates subtle installation misalignments, keeping the belt centered during high-RPM operation.

Modular flange configurations simplify routine maintenance, allowing quick visual inspections and rapid belt replacement to reduce factory downtime.

Operational Efficiency Features

• High-Speed Alignment Stability: Side flanges maintain belt tracking even at high rotational speeds.
• Layout Adaptability: Accommodates minor variations in center distance across compact equipment layouts.
• Easy Maintenance Access: Modular setup supports quick assembly, disassembly, and rapid belt swapping.

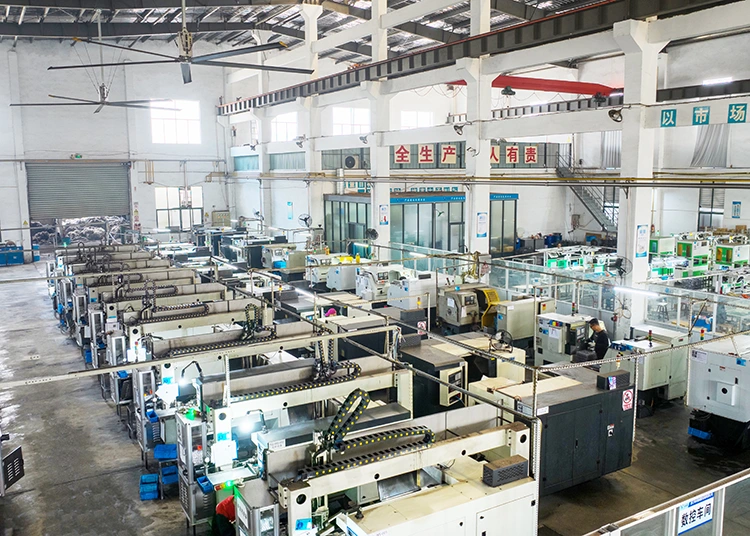

Precision Manufacturing and Quality Control

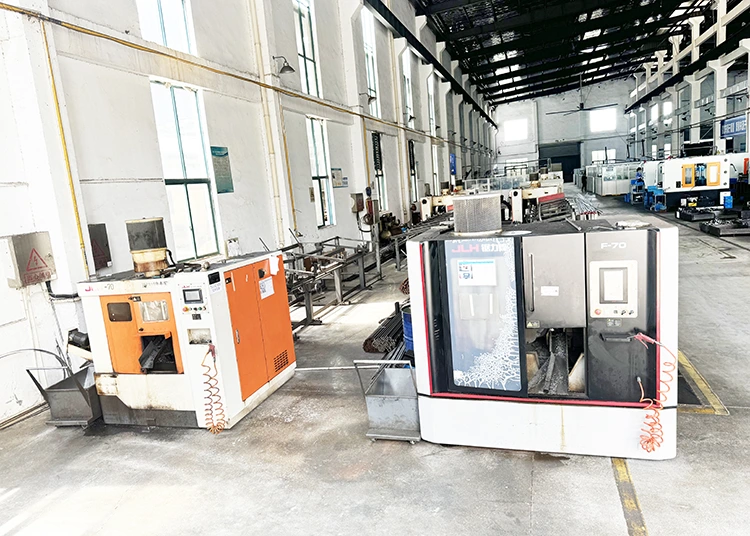

Delivering high-accuracy components for industrial drive systems requires strict adherence to precision machining standards. Every Flanged Timing Belt Pulley undergoes precise CNC turning, gear hobbing, and dynamic balancing checks to guarantee minimal runout and uniform tooth geometry.

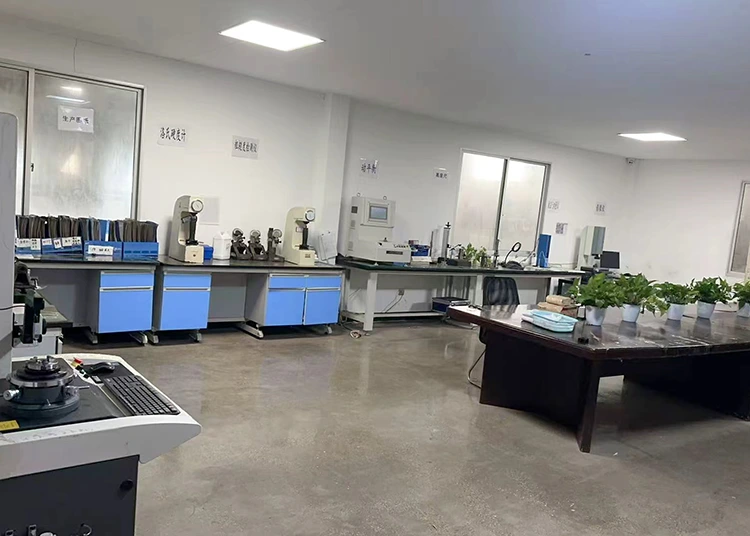

Rigorous quality protocols verify dimensional accuracy and surface passivation, ensuring consistent performance across large production volumes.

Manufacturing Protocols

• Precision CNC Turning: Guarantees tight concentricity tolerances between the hub bore and outer tooth pitch.
• Surface Finishing: Precision treatments increase surface hardness, protecting tooth profiles against frictional wear.
• Dynamic Balance Verification: Minimizes rotational eccentricity, preventing high-speed shaft chatter and bearing strain.

Applications in Automation Equipment

Designed for versatile industrial setups where axial alignment, vibration damping, and consistent output are essential, this drive component performs reliably across diverse sectors.

• High-Speed Fans & Pumps: Drives liquid transfer pumps and industrial ventilation fans with low noise.
• Conveyor & Packaging Lines: Provides smooth torque transfer in automated sorting and packaging machinery.
• Compressors & Reducers: Acts as a durable input/output drive component absorbing mechanical shock loads.
• General Automation Equipment: Ideal for automated machinery requiring high stability in dusty or humid environments.

Material and Surface Treatment Options

Selecting the appropriate base material and surface coating ensures long component service life under specific environmental conditions, whether operating in clean automated facilities or dust-heavy industrial settings.

Available Options

• Material Selection: Cast iron for vibration damping, carbon steel for high torque capacity, or aluminum alloy for reduced rotational inertia.
• Surface Treatments: Blackening for corrosion resistance, anti-rust painting for general factory environments, or electroplating for enhanced surface durability.
• Flange Formats: Available in single-flange or double-flange layouts depending on belt retention needs.

Technical Specifications

The standard technical options and parameter configurations for this product series are detailed in the engineering reference table below:

Customization Capability

Flexible production workflows support direct customization based on customer technical drawings, application demands, or specialized shaft dimensions. Engineering teams assist in selecting compatible tooth pitches, bore tolerances, and surface coatings to meet specific equipment layouts.

Bulk manufacturing capabilities ensure consistent batch quality, supporting high-volume OEM equipment assembly schedules with controlled lead times.

Custom Engineering Options

• Bore & Hub Modifications: Precision keyways, finished bores, or taper lock configurations machined to exact tolerances.
• Flange Attachment Choices: Custom single or dual flange press-fitting based on axial load parameters.
• Specialized Profiling: Tooth pitch and groove geometry tailored for standard V-belt or multi-ribbed belt profiles.

Why Choose Us

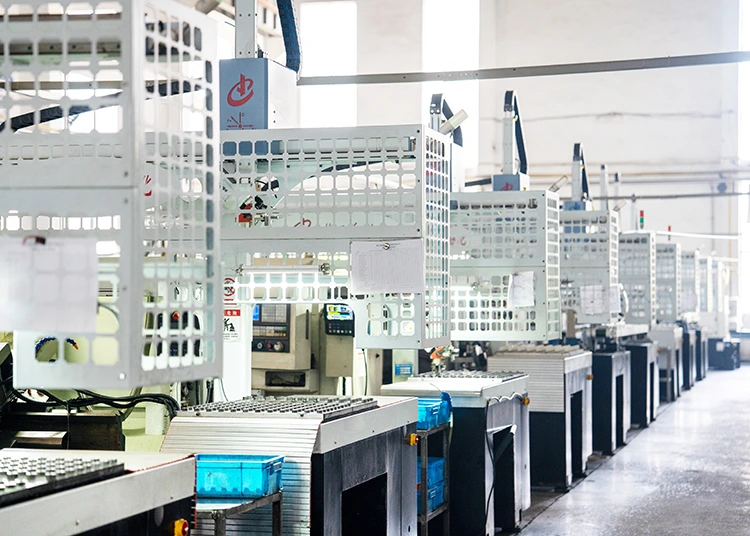

Partnering with HAWEN ensures direct access to established precision manufacturing capabilities backed by decades of technical R&D, high daily output, and strong industry recognition in China's mechanical components sector.

• Manufacturing Enterprise Strength: Backed by a national high-tech enterprise center with an annual output value exceeding 100 million yuan.
• High Daily Capacity: Modern manufacturing facility producing up to 150,000 drive pulleys daily to support major global OEMs.
• Strategic Industry Partnerships: Trusted long-term supplier to global market leaders including Midea, Gree, LG, Nidec, Huilu, and Wolong.
• Market Leadership: Holds an extensive domestic market share of 65%-75% in specialized motor drive components.
• Global Distribution Footprint: Active international trade operations delivering high-reliability drive components to Europe, the Americas, the Middle East, and Asia.

FAQ

Q1: What is the main functional advantage of choosing a flanged design over an unflanged rim?

The flange structure provides side restraint that physically prevents the belt from slipping off the rim during high-speed rotation, direction changes, or minor shaft misalignments.

Q2: Which mounting interfaces are supported for shaft attachment?

Units can be specified with standard keyways for direct shaft locking or taper lock bushings for rapid mounting, dismounting, and simplified field maintenance.

Q3: What surface treatments are recommended for moisture-prone or outdoor equipment?

Electroplating or anti-rust painting options provide effective corrosion protection, extending service life in humid or elevated-cleanliness working environments.

Q4: Can a Flanged Timing Belt Pulley accommodate multi-ribbed or narrow V-belts?

Yes. Rim grooves and tooth geometry can be precision-machined to accommodate standard V-belts, narrow V-belts, or multi-ribbed drive belts.

Q5: How does this component help protect drive motors during system overloads?

Under severe shock loads or equipment jams, the belt friction interface allows controlled slippage, absorbing sudden torque spikes and protecting motor shafts from mechanical damage.

Brand Commitment: Leveraging decades of precision manufacturing expertise and strict quality control, HAWEN delivers dependable, high-efficiency power transmission components trusted by leading equipment manufacturers across global markets.
