Electric Motor Rotor Core

HAWEN is an established supplier of the Electric Motor Rotor Core and advanced rotational drive assemblies. Backed by twenty years of manufacturing experience, we process components using 20# carbon steel and 42CrMo alloy steel. The automated manufacturing center applies advanced cleaning and passivation treatments to ensure long-term wear resistance and structural integrity across diverse heavy-duty industrial systems.

Rotational Efficiency in Electromechanical Systems

Modern industrial automation depends heavily on the continuous efficiency of rotary drives. Within these power systems, the integration of an optimized Electric Motor Rotor Core determines the overall efficiency of the drive assembly by reducing electromagnetic losses and securing rapid torque response. High-speed automation equipment, robotic joints, and electric drivetrains require rotary components designed to minimize inertia while maximizing magnetic flux density.

To sustain the rigorous demands of continuous industrial shifts, rotational units must prevent the buildup of eddy currents and mitigate excessive thermal rise. Utilizing high-conductivity raw materials processed to exact geometric shapes ensures that the electric drive runs at its peak thermodynamic limit. This mechanical stability directly influences the power output, positional accuracy, and operational lifespan of automated factory machinery.

Robotic Joint Protection and Dynamics

Industrial robotic joints require compact, high-torque servo drives that can perform swift start-stop cycles without positioning errors. The internal rotating assemblies are engineered to withstand severe torsional stress while maintaining precise concentricity. By reducing radial runout, the rotary components prevent microscopic shifts that lead to gear wear and mechanical failure over millions of cycles.

Aerodynamic Power Generation Integration

In wind and steam turbines, heavy-duty rotary parts operate in unpredictable outdoor environments subject to shifting mechanical loads. These systems utilize specialized configurations, such as open skewed slots and dedicated ventilation slot plates, to ensure heat is quickly dissipated. Efficient thermal management protects the wound copper assemblies and ensures stable power delivery back to the utility grid.

New Energy Traction Systems

Traction motors for electric and hybrid drivetrains require extremely high power densities to optimize range and vehicle acceleration. The internal rotating elements must operate at high rotational velocities, often exceeding 15,000 RPM. Achieving consistent performance at these velocities requires rigorous quality control during manufacturing to ensure the raw materials do not deform under extreme centrifugal forces.

Advanced Metallurgical Properties for High-Stress Operations

Selecting the correct material is vital to match the mechanical and electrical demands of the end application. The metallurgical characteristics of the steel grades determine the yield strength, fatigue resistance, and ease of machining for each component.

Low-Carbon Structural Steel (20# Carbon Steel)

This structural steel provides excellent weldability and ductility, making it ideal for standard mechanical assemblies. It features stable magnetic permeability, which helps reduce core losses in standard motor applications. Components manufactured from this grade are highly customizable and adapt easily to specialized designs requiring high precision during mass production.

Ultra-High Strength Chromium-Molybdenum Steel (42CrMo Alloy Steel)

For applications where mechanical load and impact resistance are paramount, this alloy steel delivers exceptional performance. It exhibits high hardenability and shows no temper brittleness, allowing it to sustain high fatigue limits. The chemical design incorporates chromium and molybdenum, ensuring deep hardening during heat treatment and excellent low-temperature toughness under impact loads.

Medium Carbon Steel Properties (45# Carbon Steel)

This medium carbon structural grade contains 0.42% to 0.50% carbon, with a density of 7.85 g/cm³. The composition includes 0.50% to 0.80% manganese and 0.17% to 0.37% silicon, with strictly controlled impurities. It offers excellent comprehensive mechanical properties, featuring a tensile strength of ≥600 MPa and a yield strength of ≥355 MPa. Post-quenching at 840°C and tempering between 560°C and 600°C optimizes the hardness to HRC 22-34.

Dimensional Verification and Geometric Alignment

To prevent mechanical vibration and high-frequency noise in rotating machinery, components must adhere to strict dimensional boundaries. Even minor geometry deviations can create asymmetrical magnetic pull, causing rapid bearing wear and catastrophic equipment failure. During high-speed operation, maintaining the concentricity of the Electric Motor Rotor Core prevents harmful vibration and ensures smooth rotational energy transfer.

High-precision automated manufacturing equipment secures consistent dimensional control throughout large-scale production. Critical parameters, such as the inner bore tolerance, are strictly maintained at ≤0.005 mm. By standardizing these tight tolerances, the finished assemblies integrate seamlessly onto the motor shafts without requiring manual adjustments during the final mounting phase.

Comprehensive Metrology and Quality Inspection

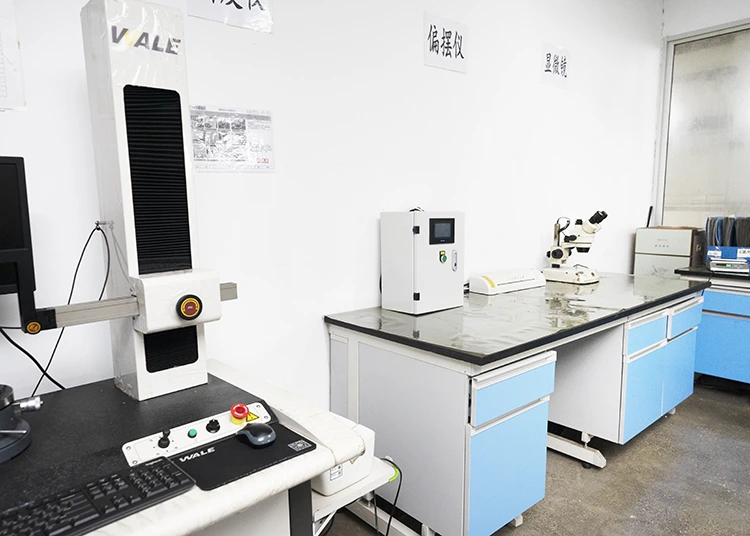

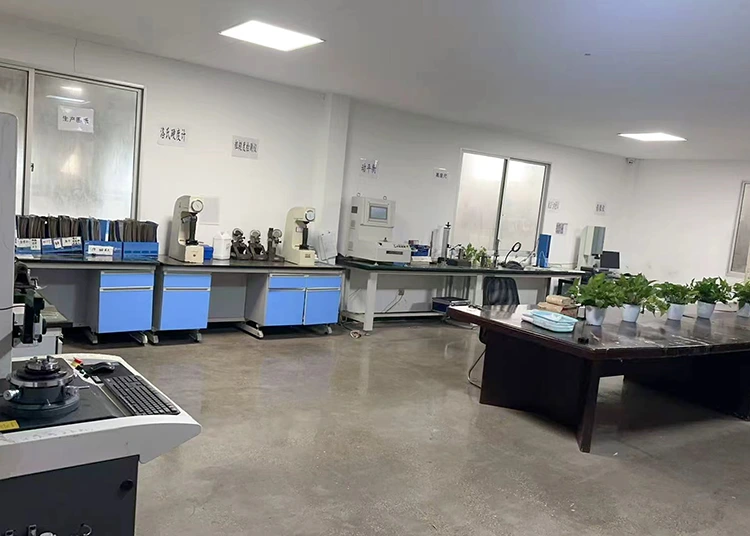

Quality assurance is maintained through advanced metrology tools located directly on the production floor. Coordinate Measuring Machines (CMM) verify multi-axis coordinates, while specialized roundness testers and profile measuring instruments evaluate the circular consistency of the inner and outer diameters. Statistical Process Control (SPC) is utilized to monitor production trends in real time, preventing dimensional drift before it exceeds engineering limits.

Raw Material Selection and Eco-Conscious Manufacturing

Sourcing consistent, high-grade raw materials is the foundation of quality control. The manufacturing facility utilizes eco-friendly 1215 low-carbon free-cutting steel for designated projects to reduce hazardous substance footprints while improving machinability. All materials comply with RoHS and REACH international standards, supported by verified analytical laboratory reports.

Surface Treatment Protocols for Extreme Environments

Rotary steel parts frequently operate in challenging industrial environments where exposure to moisture, cutting fluids, and airborne particulate matter can accelerate oxidation. Unprotected surfaces quickly develop rust, compromising the mechanical fit and shedding metallic debris into the motor housing.

To counter these issues, the manufacturing plant utilizes a fully automated, touchless cleaning and passivation process. By utilizing a conveyor-driven washing system integrated with a high-efficiency drying line, the products are cleaned, treated, and packed without manual contact. This prevents skin oil contamination, reduces the risk of physical impact scratches, and ensures the parts arrive at the assembly plant in pristine, ready-to-install condition.

Diverse Coating Customization Options

While standard chemical passivation protects components under typical warehouse and assembly conditions, specialized environments may require enhanced barriers. The facility provides various customized finishing options to meet specific requirements, including standard electroplating, zinc plating, nickel plating, and fully automated black oxide treatments that improve corrosion resistance without altering critical physical dimensions.

Production Capabilities and Technical Specifications

The table below summarizes the technical specifications of our standard precision-machined core products:

Why Choose Us

Partnering with an experienced manufacturing facility ensures that your production lines remain supplied with highly consistent, quality-tested mechanical components. Our infrastructure is optimized to deliver long-term value and reliability:

• Fully Automated Infrastructure: The factory operates 10 fully automated production lines, complete with an integrated surface cleaning and automated black oxide line. This minimizes manual processing errors and guarantees high repeatability across high-volume production runs.
• Substantial Production Headroom: With a total monthly capacity of approximately 5 million units and current monthly shipments of 3 to 4 million units, the facility maintains a 40% to 60% capacity buffer to comfortably support rapid project scaling and sudden changes in demand.
• Global Automotive and Appliance Experience: The production team maintains long-standing strategic partnerships with world-class motor manufacturers, including Nidec, Midea, Gree, LG, Huilu, and Wolong, proving our capability to meet rigorous quality standards.
• Rigorous Quality and Environmental Auditing: Quality control begins at raw material sourcing, yielding a stable 99.995% process pass rate. All shipments undergo 100% inspection before leaving the facility and are fully compliant with EU RoHS and REACH environmental guidelines.

Frequently Asked Questions

What design configurations can be customized for an Electric Motor Rotor Core?

We provide full customization according to provided technical drawings. Our engineering team can adjust dimensions, internal bore profiles, slot geometries, and raw material specifications—such as utilizing 20# carbon steel, 42CrMo alloy steel, or 45# carbon steel—to match specific electromechanical parameters.

How does the touchless passivation process prevent rust?

The touchless surface treatment line runs the components through automated chemical cleaning and passivation baths before drying them in a sealed hot-air chamber. Eliminating manual contact prevents sweat-induced oxidation and guarantees that the parts remain rust-free before installation.

What testing protocols are used to ensure the precision of the inner bore?

Every batch is checked using Coordinate Measuring Machines (CMM) and high-precision roundness testers. We strictly control the bore cylindricity to ≤0.01 mm for our standard 20# carbon steel units, exceeding the typical industry standard of ≤0.015 mm.

Are the raw materials compliant with international environmental directives?

Yes. All raw materials, including 1215 low-carbon free-cutting steel and various alloy grades, undergo strict chemical testing. Every delivered batch is supported by official REACH and RoHS compliance certificates.

How does the factory handle sudden increases in production volume?

Our production plant in Zhejiang Province maintains an active capacity reserve of up to 2 million units per month. This allows us to scale production and adjust shipping schedules without affecting lead times or product consistency.

Engineered Precision and Manufacturing Leadership

With more than two decades of dedicated experience in precision mechanical processing, the manufacturing facility continues to deliver dependable engineering solutions for challenging industrial environments. By controlling every stage of the process—from metallurgical inspection and CNC automated machining to touchless chemical passivation—we ensure that every rotational component meets high performance standards. Trust HAWEN to deliver the precision, capacity, and consistency required to power your next generation of high-efficiency motor systems.
