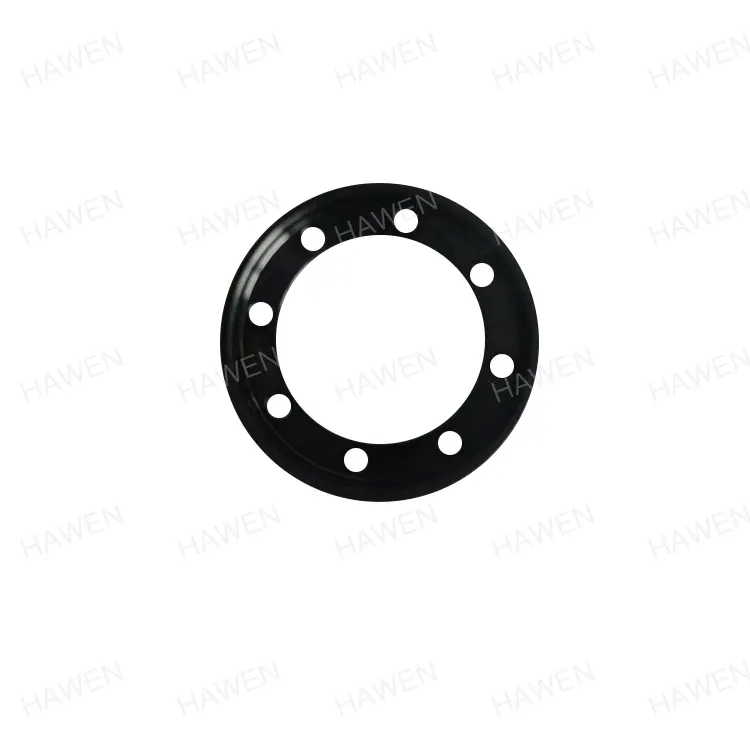

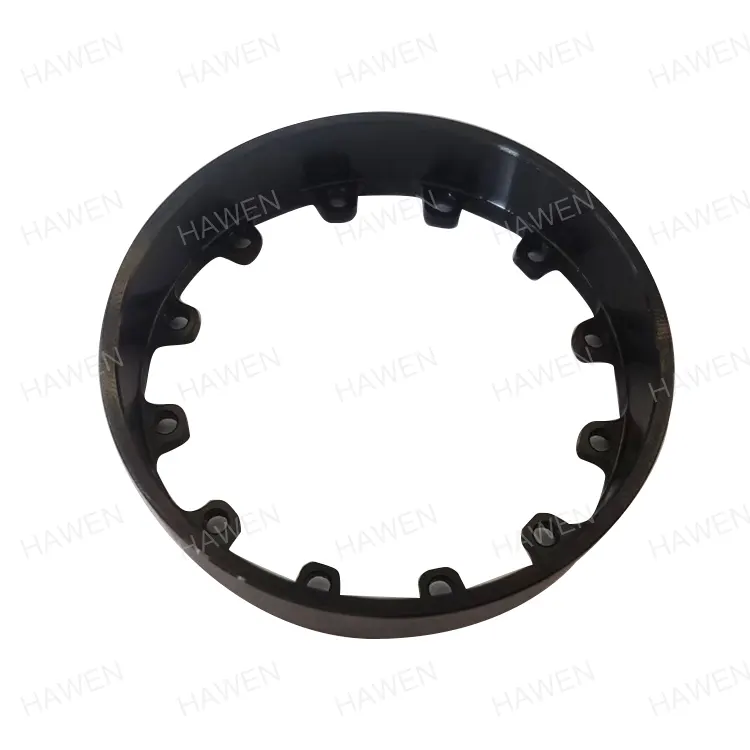

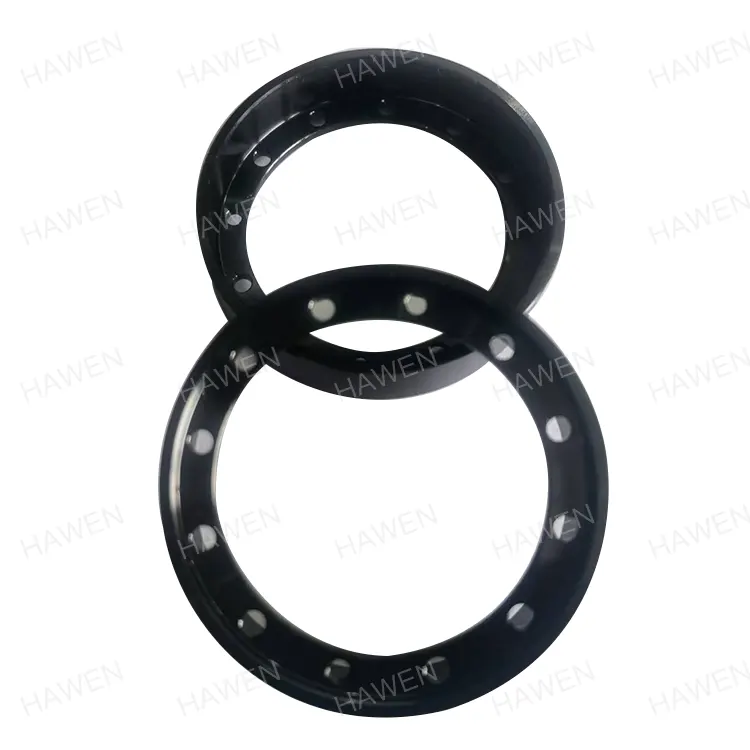

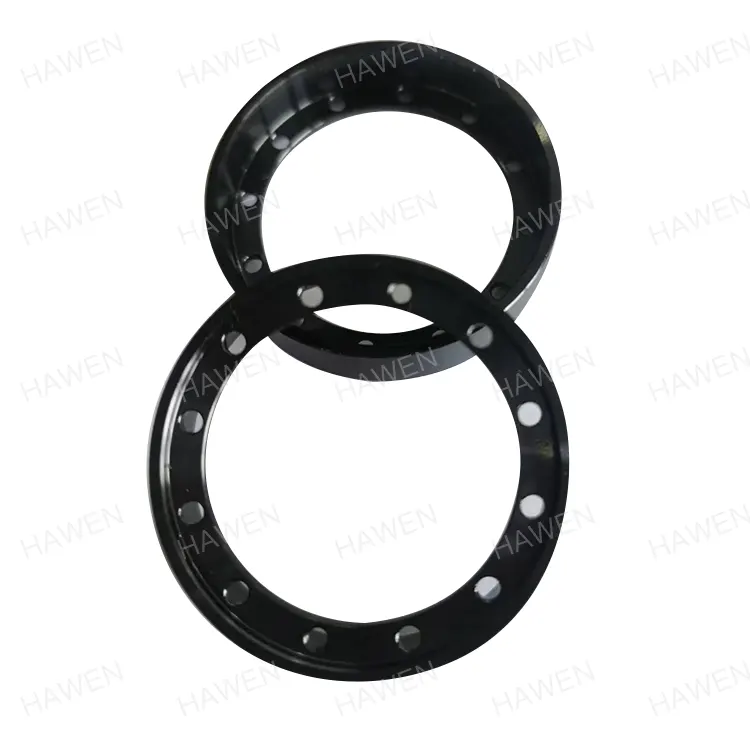

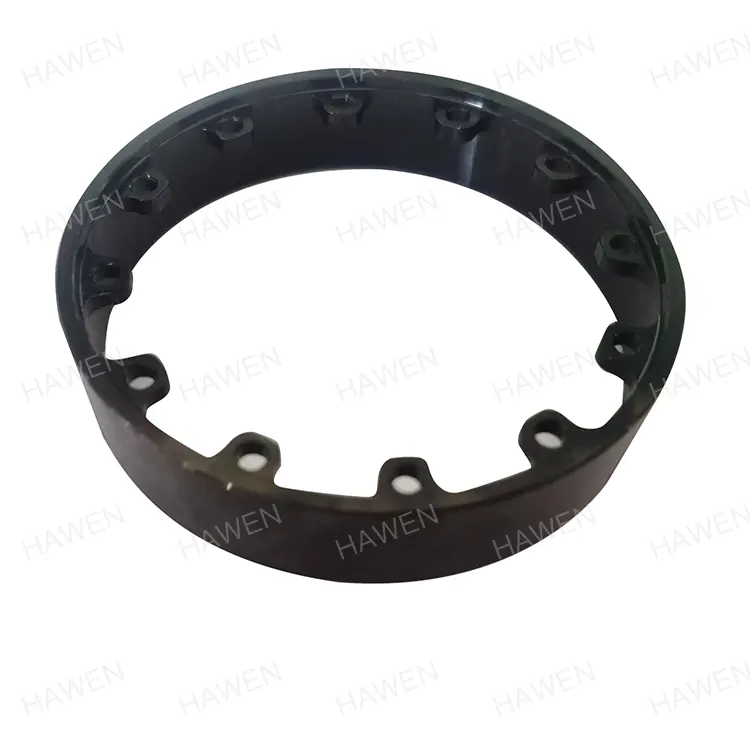

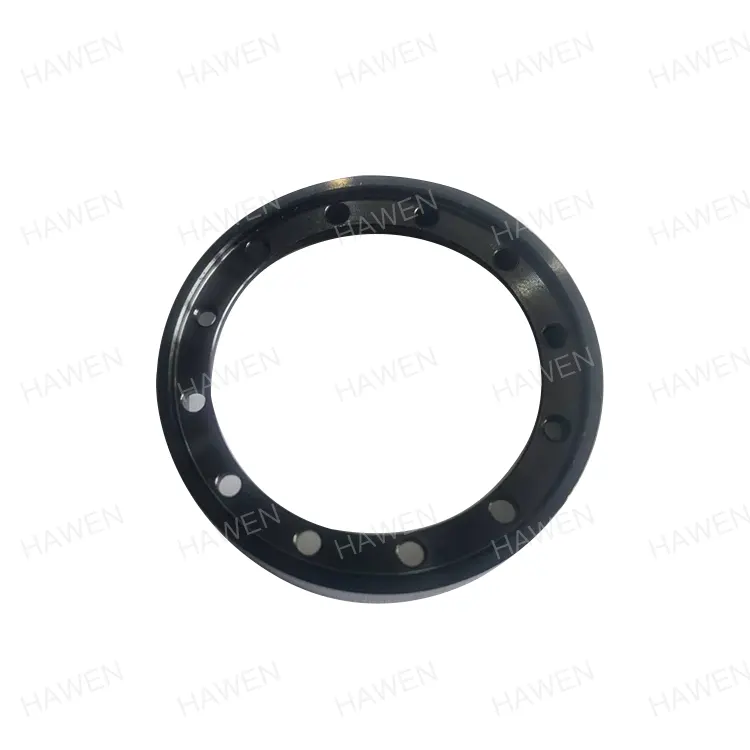

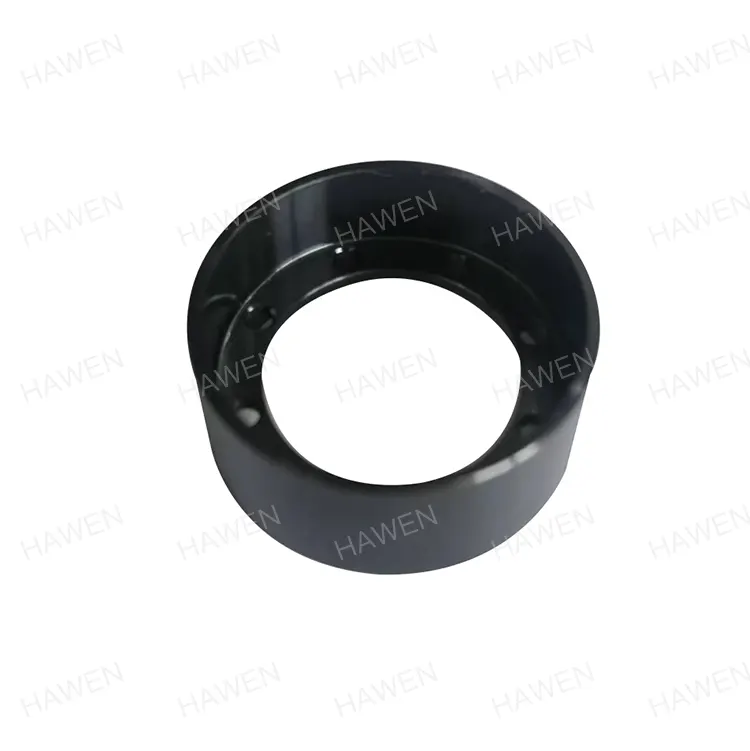

Robot Motor Yoke

Robot Motor Yoke is a core basic component for robot servo, torque, and joint motors. Although it appears to be a mechanical structural part, it actually performs three core functions: magnetic circuit conduction, structural support, and heat dissipation & electromagnetic shielding. It directly determines the torque density, operating efficiency, stability, and service life of motors, making it an indispensable key part for high-precision drive systems in advanced robots.

Haven (Trilion) has been deeply engaged in the machinery manufacturing industry for more than 20 years. Since 2023, it has focused on the R&D and large-scale production of Robot Motor Yoke. With mature processes, strict quality control, and rapid customization capabilities, it has become a high-quality supplier of core accessories for robot motors in China, holding a 10% domestic market share and providing long-term supporting products for many leading home appliance and robot enterprises.

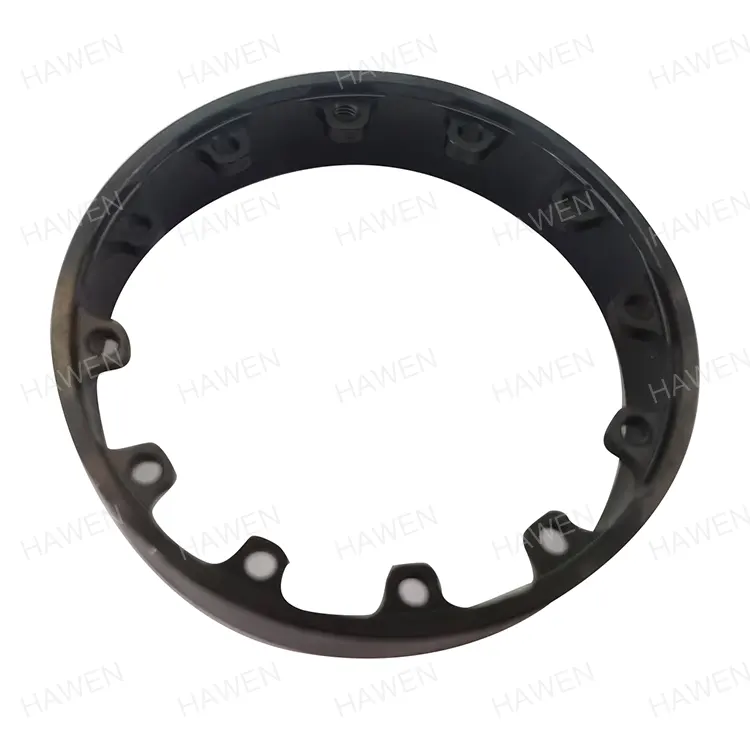

Core Product Parameters

The promoted Robot Motor Yoke adopts standardized precision machining and also supports custom production based on customer drawings, adapting to the installation and performance requirements of different robot motor models. The basic core parameters are listed below, all verified through actual production and customer applications:

Core Functions & Application Value

As the magnetic circuit framework and structural carrier of robot motors, Robot Motor Yoke is not a simple metal fitting. Its performance is directly related to the overall operation of the motor, covering magnetic, mechanical, and thermal dimensions to ensure efficient and stable motor operation.

Four Core Functions

Closed Magnetic Circuit

Builds a low-reluctance path for permanent magnet and armature magnetic fields, precisely constraining magnetic flux distribution, greatly reducing magnetic flux leakage, improving magnetic field utilization, and avoiding output reduction and abnormal heating caused by magnetic saturation, optimizing energy conversion efficiency from the source.

Structural Support

Firmly fixes permanent magnet poles and bears alternating loads from high-speed start-stop and frequent commutation, ensuring structural rigidity and geometric accuracy during operation and preventing component deformation at high speeds.

Heat Dissipation & Electromagnetic Shielding

Acts as a key heat conduction path to quickly dissipate iron and copper losses, controlling temperature rise. It also effectively suppresses stray magnetic fields to avoid interference with encoders, sensors, and other precision components, improving overall EMC performance.

Performance Anchoring

Material selection, processing technology, section thickness, and other parameters directly determine torque density, torque ripple, and operating efficiency, serving as a critical prerequisite for high-precision and high-response robot actuation.

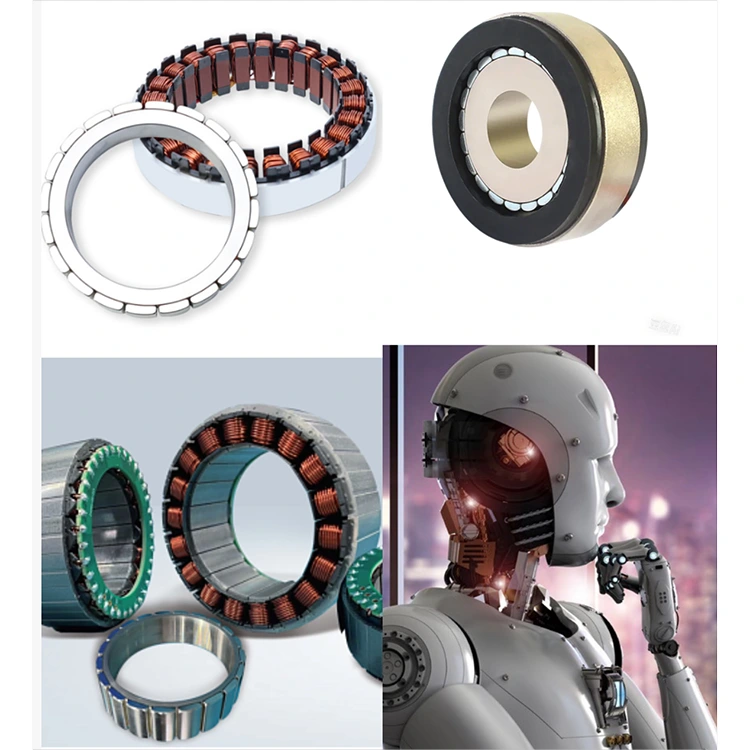

Applicable Motor Types & Downstream Equipment

This Robot Motor Yoke is compatible with various mainstream robot-dedicated motors, covering core modules of industrial robots, collaborative robots, and humanoid robots:

Servo Motors: Used as stator yoke and rotor back yoke, balancing compact size and high torque output for flexible multi-joint motion.

Frameless Torque Motors: Ring structure integrates directly into robot joints, eliminating external housings and improving torque density and installation flexibility.

Axial Flux / Disc Motors: Adapts to dual back-yoke structures for axial magnetic circuits, featuring a flat design for leg and waist drive modules in humanoid robots.

Coreless Motors: Can double as motor housings, eliminating cogging torque for low-ripple, high-response operation in precision robot end-effectors.

Key Quality Indicators & Industry Benchmarking

We control the entire production process of Robot Motor Yoke to strict standards, with core precision indicators exceeding general industry benchmarks, fully meeting the procurement requirements of high-end motor manufacturers in dimensional stability, assembly fit, and service life.

Performance Impact: High-quality Robot Motor Yoke can directly increase motor power density by 15%–30%, suppress over 99% of stray magnetic field interference, reduce magnetic circuit loss, withstand high electromagnetic stress, and ensure long-term stable robot operation.

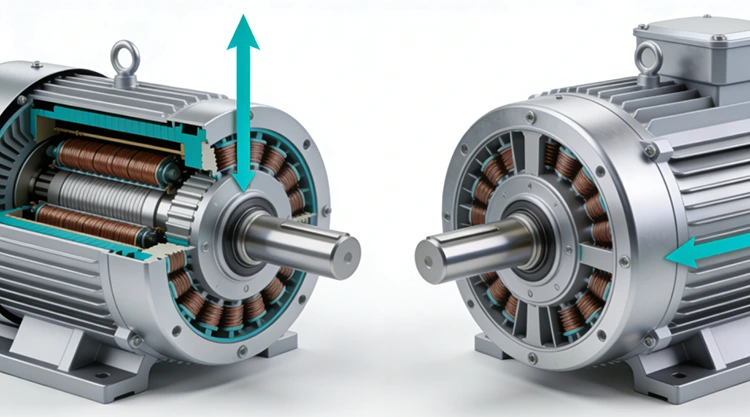

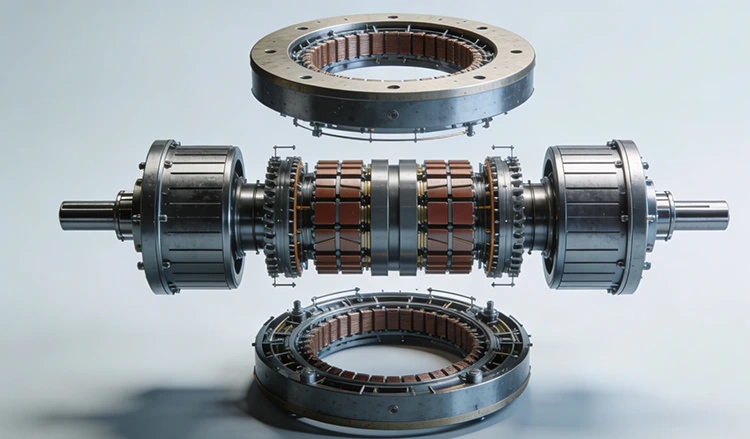

Axial Flux (Left) vs. Radial Flux (Right) Cross-Sections

Material Selection & Process Control

Special Material: 45# High-Quality Carbon Structural Steel

The Robot Motor Yoke uses national standard 45# medium carbon steel with strictly screened properties adapted to robot motor working conditions:

● Carbon content: 0.42%–0.50%; density: 7.85 g/cm³; manganese: 0.50%–0.80%; silicon: 0.17%–0.37%; low phosphorus and sulfur impurities.

● Excellent comprehensive mechanical properties: tensile strength ≥ 600 MPa, yield strength ≥ 355 MPa, elongation ≥ 16%; hardness HRC32–36 after quenching and tempering.

● Optimized via dedicated heat treatment, balancing strength and toughness with outstanding fatigue resistance for long-term high-frequency motor operation.

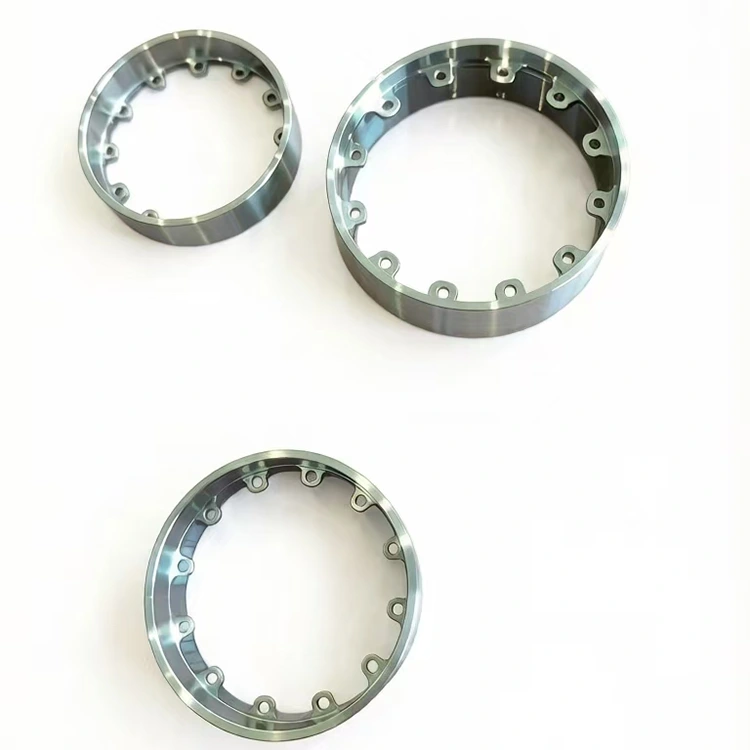

Precision Machining & Process Control

A full closed-loop control system ensures high precision and batch consistency:

● Inner hole tolerance controlled to ±0.005 mm; equipped with CMM, roundness tester, contour monitor, and SPC statistical process control.

● Strictly controlled processing environment to reduce temperature fluctuation and vibration; high-precision CNC machines and special tools ensure dimensional compliance.

● Full incoming material inspection, real-time heat treatment monitoring, and 100% finished product inspection to prevent non-conforming products from entering the market.

Surface Treatment: Fully Automatic Black Oxide Finishing

Uses self-developed black oxide formula and fully automatic production line with no manual contact to avoid damage and contamination:

● Integrated automatic black oxide and drying process improves corrosion and rust resistance to industry standards.

● Supports customized surface treatments including electroplating, galvanizing, and nickel plating for special applications.

Core Enterprise Advantages

With over 20 years of machinery manufacturing experience, Haven has built a complete system from R&D, production, and quality control to after-sales service, forming differentiated competitiveness in Robot Motor Yoke production and effectively solving customer pain points in procurement, customization, and mass production.

Sufficient Capacity & Stable Delivery

● 120 high-precision CNC machines, 1 fully automatic cleaning line, 25 professional technicians.

● Monthly capacity: 30,000 units; current monthly sales: 10,000–20,000 units, leaving 40%–50% capacity for bulk and urgent orders.

● Reliable supply chain in Zhejiang ensures short raw material lead times and stable delivery for large-scale, multi-variety continuous production.

Fully Automated Quality Control & Near-Zero Defects

● 25 automatic inspection devices for full-dimension testing from incoming materials to finished goods.

● 100% online quality control; production pass rate 99.99%, factory pass rate 100%.

● Certified to ISO9001 and IATF16949; full production traceability with superior consistency and reliability.

Professional Technical Support & Strong Customization

● Dedicated technical team specializing in yoke process optimization and design.

● Rapid response to customization: drawing-based production, specified materials, and surface treatments.

● One-stop support from design consultation, process optimization, and small-batch trial production to mass production, shortening development cycles and reducing costs.

Environmental Compliance & Cost Control

● Full compliance with EU ROHS and REACH with complete certification reports.

● Automated production reduces manual intervention and improves material utilization, controlling costs while achieving low energy consumption and low waste emission, balancing environmental performance and cost-effectiveness.

Cooperative Clients & Partnership Models

Our Robot Motor Yoke has long supplied leading domestic and international enterprises including Samsung, Haier, and Nidec, with stable strategic cooperation for over a decade. Product quality and service are highly recognized with high repurchase rates.

We support multiple cooperation models:

● Bulk procurement of standardized products

● Custom production based on customer drawings

● Sample production for special specifications

We welcome customers worldwide to visit our factory for inspection and business cooperation. Relying on our mature production system and technical strength, we help customers reduce development, testing, manufacturing, and after-sales costs to achieve long-term win-win results.
